Ceramic batch ball mill:, High Efficiency, low Cost, Dry or wet grinding, ultra-fine grinding & discharging, with ISO, CE, BV - details see: https://www.machineto.com/china-ceramic-ball-mill-with-ultra-fine-discharging-10314399

Ceramic ball mill brief introduction:

Ceramic ball mill mainly used for mixing, milling of the material, the fineness even saving force. Not only the dry mill, but also wet mill. The machine could use the different line according to the product requirement to satisfy different requirement. The milling fineness depends on the milling time, the motor start by the coupling reduce voltage, lower the starting electricity, the structure is divided into integral type and freestanding type, advantages of product is lower investment, energy saving, structure novelty, simply operated, used safely, ability even etc. It is suitable for mixing and milling of the general and especial material. User could choose the proper type and line, media material depend on material ratio, rigidity, and output size etc.

Ceramic ball mill main specifications:

Ceramic ball mill Model	Capacity(t /time )	rotation speed(r/min)	Power(kw)	Weight(t)
TCQ910 X1120	0.2	36	5.5-11	3
TCQ1200 X1400	0.5	32	11-18.5	3.8
TCQ1500 X1800	1	28	15-22	4.5
TCQ1800 X2100	1.5	26	18.5-30	6
TCQ2100 X2100	2.5	22	22-37	7.4
TCQ2200 X2400	3	20	28-45	8.2
TCQ2500 X2900	5	16	37-55	9.3
TCQ2800 X3700	8	14.5	55-75	12.5
TCQ3000 X3700	10	14	75-90	18.6

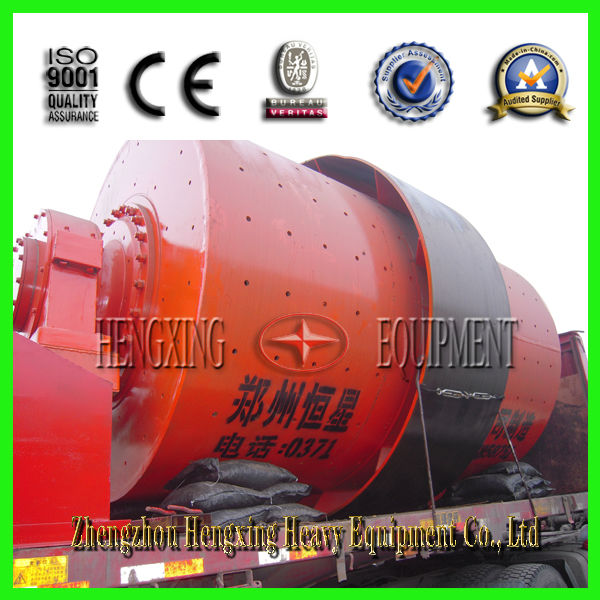

Ceramic ball mill in delivery:

ceramic ball mill:

More ball millls manufacturered by Hengxing:

Ceramic ball mill certification:

Zhengzhou Hengxing Heavy Equipment Co., Ltd manufactures all kinds of ball mill, such as cement balll mill, wet ball mill, ceramic ball mill, ceramic batch ball mill and etc.

You are welcome to our factory! Call Rocky:0086-18837173732
