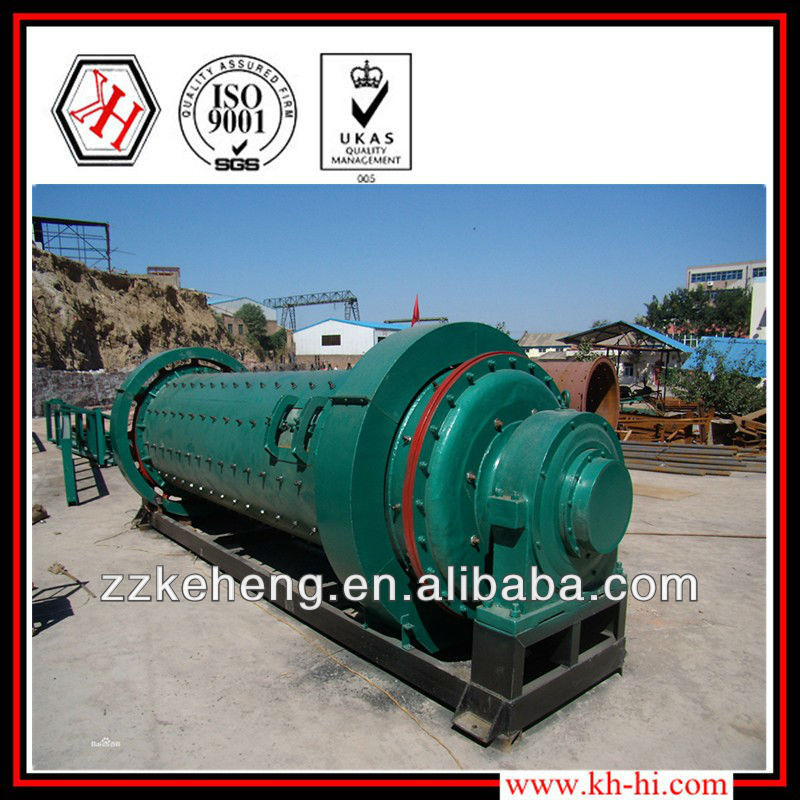

cheap ball mill grinding grinding mill

The ball mill is a key equipment for regrinding, widely used for the sand making,cement, the silicate product, etc. - details see: https://www.machineto.com/cheap-ball-mill-grinding-grinding-mill-10314800

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):18.5-800kw
Capacity(t/h):1-65t/h	Place of Origin:Henan China (Mainland)	Brand Name:Keheng	Model Number:MQG
Dimension(LWH):depended on size/model	Weight:3.6-137t	Certification:ISO 9001:2008	Warranty:1year
After-sales Service Provided:Engineers available to service machinery overseas	brandname:as your demand	color:as your demand	material:GB steel plate

contact supplier for cheap ball mill grinding grinding mill

Ball Mill Specifications:

1.Wet or dry type

2.Safe operation

3.Big capacity mill

4.Convenient maintenance

5.Uniform final size

6.For grinding cement,silicate,ceramic

Ball Mill Description:

Ball mill is the key equipment for secondary grinding after crushing.And it is suitable for grinding all kinds of ores and other materials,no matter wet grinding or dry grinding.Besides,it is mainly applied in many industries,such as ferrous & non-ferrous metal mine,building materials,chemical,electric power,coal,traffic,etc.In our company, this series of high-efficiency ball mill adopts rolling bearing support instead of sliding bearing support with bearing bush.Therefore,it can save energy by 10-20%. According to different discharging ways,it can be divided into two kinds, grate type and overflow type.

Ball Mill application:

Ball mill is a key equipment for regrinding.It iswidely used for the sand making,cement,the silicate product,new type building material, fireproof material,chemical,fertilizer, black and nonferrous metal,glass,ceramics and etc.Our ball mill can grind ore or other materials that can be grinded either by wet process or by dry process.

Ball Mill Working Principle:

This ball mill is horizontal type and tubular running device, has two warehouses. This machine is grid type and its outside runs along gear.The material enters spirally and evenly the first warehouse of the milling machine along the input material hollow axis by input material device. In this warehouse,there is a ladder scaleboard or ripple scaleboard,and different specification steel balls are installed on the scaleboard,when the barrel body rotates and then produces centrifugal force,at this time,the steel ball is carried to some height and falls to make the material grinding and striking. After grinded coarsely in the first warehouse,the material then enters intothe second warehouse for regrinding with the steel ball and scaleboard. In the end,the powder is discharged by output mate board and the end products are complete.

Besides,we also have the other series of grinding machines, including energy saving ball mill,overflow ball mill,grid ball mill,rod mill,raw mill,and so on.

Ball Mill Parameter:

Besides,we also have the other series of grinding machines, including energy saving ball mill,overflow ball mill,grid ball mill,rod mill,raw mill,and so on.
Warmly welcome to visit our factory at any time!

....
