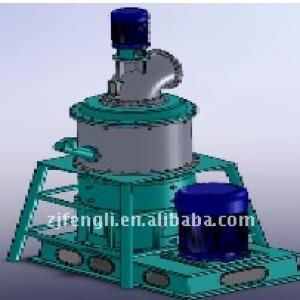

CGM-1000 roller mill

CGM1000 roller mill is a dry grinding classing mill which can reach 3~35um fine particle size. It has advantages of excellent p - details see: https://www.machineto.com/cgm-1000-roller-mill-10314159

Condition:New	Type:Raymond Mill,Mill	Place of Origin:Zhejiang China (Mainland)	Brand Name:Fengli
Model Number:CGM-1000	Application:kaolin, limestone, calcspar, steatite, graphite

contact supplier for CGM-1000 roller mill

1. Description

CGM1000 roller mill is a dry grinding classing mill which can reach 335um fine particle size. It has advantages of excellent performance, high efficiency , small outline, easy maintenance .

2. Application

It is very suitable for milling non-metal mineral with hardness below 6mohs and humidity below 8%, such as kaolin, limestone, calcspar, steatite, graphite.

3. Features

1. Compare to Raymond mill and jet mill,it has double capacity with same power, and has 1.5 times of grinding force

2. It has capacity of 900kg at 10 micron>97%

3. Its fine particle size can be adjusted by the sorting wheel

4. Simple erection and maintenance.

main technical parameter

Model parameter	CGM1000
Roller number	21
Roller dimensions (mm	φ220×90
Liner diametermm	φ770
Rotor velocityRPM	250
Mill powerkw	75
feeding particle sizemm	≤20
Fine particle sizeum	335
Classifier velocityRPM	6002000
Classifier powerkw	18.5
capacityt/h	0.53.5
