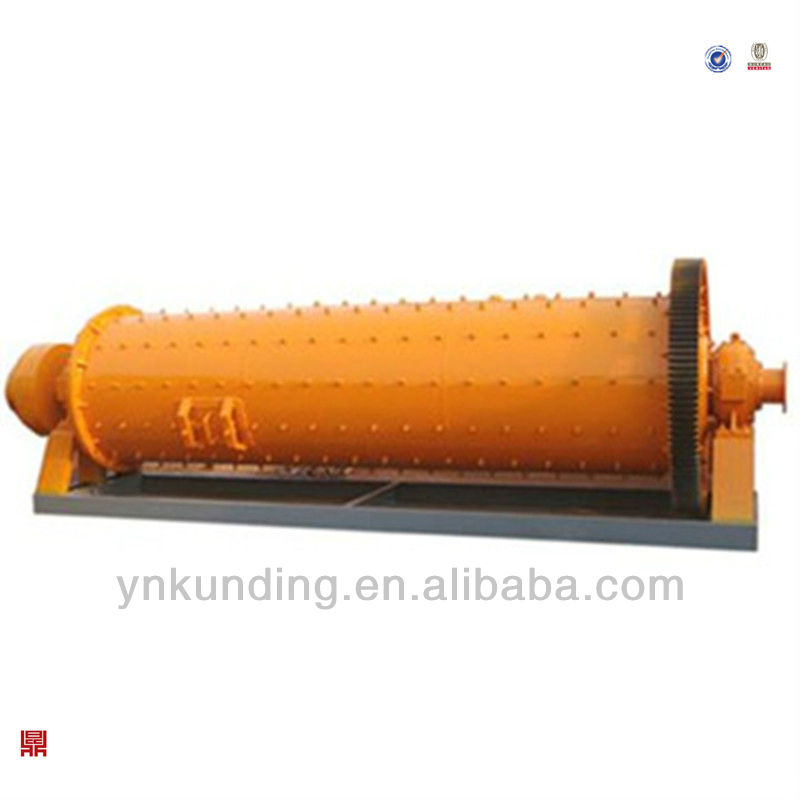

cement production line widely use mill

cement production line widely use mill:, 1.for grinding operation of mineral, 2.has many steel ball, 3.wet and dry types, 4.OEM - details see: https://www.machineto.com/cement-production-line-widely-use-mill-10314393

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):380000
Capacity(t/h):6-7	Place of Origin:Yunnan China (Mainland)	Brand Name:KDM	Model Number:mill MQG2275
Dimension(LWH):diameter2200*7500mm	Weight:56t	Certification:ISO,CE	Warranty:one year
Diameter* length(MM):2200*7500	Capacity (t/h):16~18	Rotation speed of shell (r/min):21.4	Ball load (t):32.5
Power (kw):400	Model of the main decelerator:ZD70	mill Weight (t):63	CERTIFICATE:ISO9001:2000

contact supplier for cement production line widely use mill

usage for mill :

Kunding millcan grind many kinds of ore and other materials, thus it is widely used inpowder-making production lineincluding cement, silicate, new-type building material, refractory material, chemical materials, ore dressing, ferrous metal and non-ferrous metal, glass ceramics industries etc.

Operating Principle for mill

mill consists of a horizontal cylindrical shell, provided with renewable wearing liners and grinding medium—steel balls. In the low-speed rotating shell, steelballscling to the liner under the influence of inertia and friction. Then they will be taken to a certain height and thrown down as a result of the gravity and centrifugal force. In this process, the materials continuously dropped from one end of the cylinder will be smashed by the balls. In addition, both the balls and materials will be rolling and sliding irregularly together.

Features for mill

1. High efficiency and energy- saving

2. Widely application

3. Easy and safe operation
4. Stable performance
5. Even product size

Technical parameters

Model	Diameter × length	Capacity (t/h)	Rotation speed of shell (r/min)	Ball load (t)	Power (kw)	Model of the main decelerator	Weight (t)
MQG1245	1200×4500	1.4-2	30.5	5.2	45	ZD30	12
MQG1557	1500×5700	3.5-4.5	29.86	12.25	115	ZD40	23
MQG1864	1830×6400	5.5-6.4	24.23	18.5	155	ZD50	34.6
MQG1870	1830×7000	6-7	23.91	21	180	ZD60	36.5
MQG2265	2200×6500	14~15	21.4	31	380	ZD70	50
MQG2275	2200×7500	16~18	21.4	32.5	400	ZD70	63
MQG2470	2400×7000	26~30	20.8	38	600	JK75	70.5
MQG3090	3000×9000	42~50	17.2	65	1000	MBY800	15.6

About us:

Yunnan Kunding Machinery&Equipment Co., Ltd is a famous manufacturer of mining and sandstone production equipment in China. The main products include mineral-processing equipment such as crusher, ball mill, magnetic separator, flotation machine, rotary kiln and sandstone production equipment such as vibrating screen, sand making machine.
