cement mill for cement plant
Cement mill is the main equipment for power milling raw materials and chamotte in cement plants., Tube mill, raw material mill - details see: https://www.machineto.com/cement-mill-for-cement-plant-10314046
Condition:New | Type:Ball Mill | Motor Type:DC Motor | Power(W):380kw-3200kw |
Capacity(t/h):1~200 | Place of Origin:HEN,Henan China (Mainland) China (Mainland) | Brand Name:Mega | Model Number:M Series |
Weight:48.5-254.2 | Certification:CE,ISO:9001-2000 | Warranty:more than one year | After-sales Service Provided:Engineers available to service machinery overseas |
Application:cement clinker | Item:cement mill | Delivery Detail:1~4 months | Packaging Detail:suitale for ocean transportation |

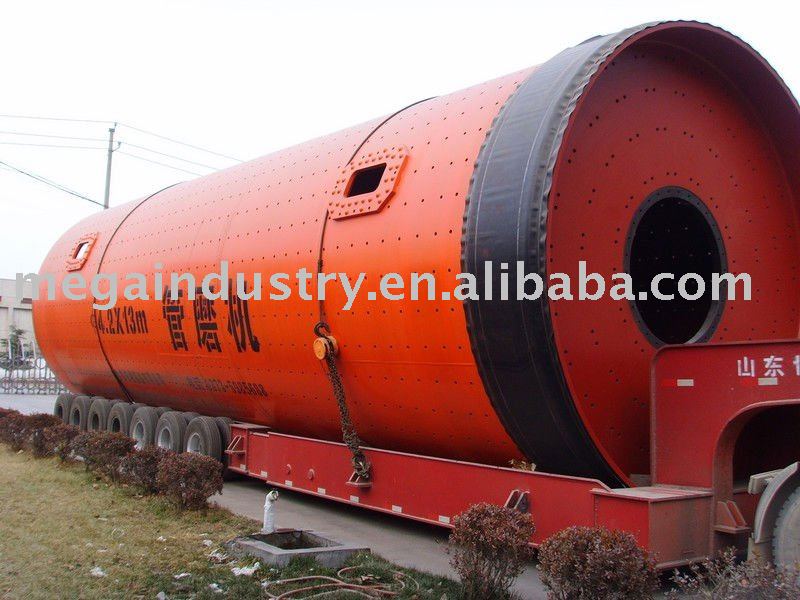

cement mill for cement plant
cement mill Features |
Cement mill is the main equipment for power milling raw materials and chamotte in cement plants, it can be used for open-flow powder milling system and circle-flow powder milling system with powder dressing machine, it can be also used for powder milling medium hardness materials and other materials can be milled in metallurgy, electric power, chemical industry and other industries. |
cement mill Specification |
Type | Cylinder (mm) | Cylinder Rotation speed | Capacity (t/h) | Motor Power (kw) | Weight | Remarks | Diameter | Length | r/min | Raw | Cement | | | | M2265 | 2200 | 6500 | 21.95 | 17-19 | 12-14 | 380 | 48.5 | | M2275 | 2200 | 7500 | 21.95 | 19-21 | 13-15 | 380 | 51.4 | | M22110 | 2200 | 11000 | 21.95 | 20-22 | 14-16 | 570 | 79.5 | | M2470 | 2400 | 7000 | 20.4 | 22-24 | 14-15 | 475 | 68.5 | | M24100 | 2400 | 10000 | 20.4 | 28-30 | 17-18 | 630 | 98.6 | | M26130 | 2600 | 13000 | 19.7 | 37-4 | 25-30 | 1000 | 164.8 | | M3090 | 3000 | 9000 | 18.7 | 36-44 | 30-35 | 1000 | 157.2 | | M30110 | 3000 | 11000 | 18.7 | 55-65 | 40-47 | 1250 | 175 | | M32120 | 3200 | 12000 | 17.8 | 68-75 | 48-56 | 1400 | 210 | | M3475 | 3400 | 7500 | 16.9 | 56-60 | 44-48 | 1000 | 166.7 | | M35110 | 3500 | 11000 | 16.5 | | 50-55 | 2000 | 141 | No main drive | M38120 | 3800 | 12000 | 16.3 | | 58-60 | 2500 | 225.6 | No main drive | M40130 | 4000 | 13000 | 15.46 | | 90-100 | 2*1600 | 376 | | M42110 | 4200 | 11000 | 15.75 | | 105-110 | 2800 | 254.2 | No main drive |
|
Packaging Detail:suitale for ocean transportation |
Delivery Detail:1~4 months |
