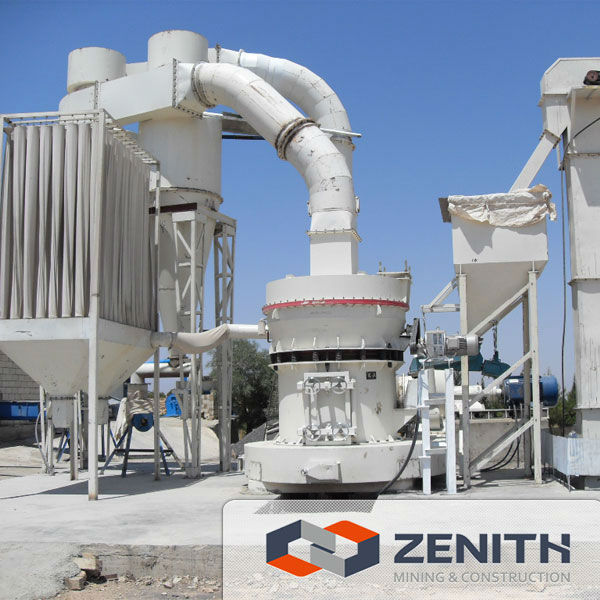

Cement granding plant

Cement Grinding Plantis suitable for grinding the barite, limestone, kaolnite, ceram and slags, etc. which below scale 9.3 of Moth and below 6% shadness and 280-odd sorts of non-inflammable and non-explosive stuff in the trades of mining, metallurgy, chemical engineering and building material for high fine powder generating and processing . The Product size is adjustable in the range of 80-425 mesh. Thegrinding cement mill is possible to produce 30-80 mesh coarse powder through special device in the machine.

In the main frame, a 100-1500 kg powered pressure spring is fixed to the roller suspender. After the hammer mill is put into effect, the roller rotates around the main shaft, and rolls closely against the ring affected by the high pressure spring and centrifugal force. And its rolling pressure is 1.2 times higher than that of the Raymond grinder under the same power condition and the output is raised to a new degree.When the stuff is loaded into the grinding cavity, The grinding plant is shoveled into the space between the roller and the ring for grinding.The resulted powder is routed to the separator along the circulation wind of the blower and the standard fine powder is guided to the cyclone collector as final product and large size stuff falls back to the grinder for regrinding. The circulation wind returns to the blower to repeat the above process and the remainder wind enters into bag deduster for purification.

When a certain degree of wear of roller and ring is caused, The cement mill is recommended to adjust the length of the spring to maintain the constant pressure between the roller and the ring. As a result, the stable output and fineness are ensured.

cement grinding plant Specification:

Name		MTM100	MTM130	MTM160
Ring roll number(pcs)		4	5	6
Major diameter of roller(mm)		Φ310X170	Φ410X210	Φ440X270
Inner diameter of roller(mm)		Φ950X170	Φ1280X210	Φ1600X270
Revolving Speed(r\min)		130	103	82
Max feed size(mm)		<25	<30	<35
Final size(mm)		1.6-0.045 fineness can reach to 0.038	1.6-0.045 fineness can reach to 0.038	1.6-0.045 fineness can reach to 0.038
Output(t\h)		3-8	6-11	9-22
Complete physical size(mm)		7100×5900×7900	9200×7250×9700	12550×5700×8355
Main unit motor	Model	Y225S-4	Y280S-4	Y315M-4
	Power(kw)	37	75	132
	Rotate speed(r\min)	1480	1480	1480
Centrifugal induced draft fan motor	Model	Y225S-4	Y280S-4	Y315M-4
	Power(KW)	37	75	132
	Rotate speed(r\min)	1480	1480	1480
Classifier speed regulating motor	Model	YCT200-4A	YCT200-4B	YCT250-4A
	Power(kw)	5.5	7.5	18.5
	Rotate speed(r\min)	125-1250	125-1250	132-1320
Elevator	Elevator model	TH210	TH210	TH315
	Motor model	Y100L2-4	Y100L2-4	Y112M-4
	power(kw)	3	3	4
	Rotate speed(r\min)	1430	1430	1440
Jaw Crusher	Jaw Crusher model	PE200×350	PE250×400	PE250×750
	model	Y160M-6	Y180L-6	Y200L2-6
	Power(kw)	7.5	15	22
	Rotate speed(r\min)	970	970	970
Magnetic vibrating feeder	Model	GZ2F	GZ3F	GZ3F
	Power(kw)	0.15	0.2	0.2
