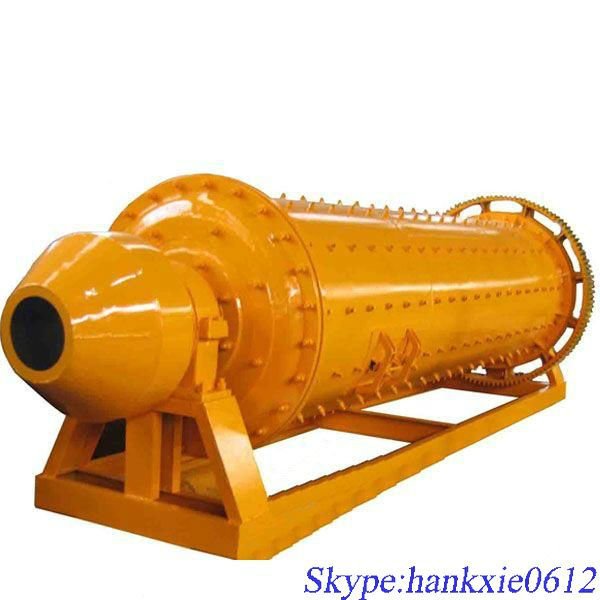

Cement Ball Mill Machine Energy Saving Type

1.1year warranty period

2. High production capacity

3. Energy Saving Ball Mill

Application

Ball mill is an efficient tool for grinding many materials into fine powder. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. It is widely used in building material, chemical industry, etc. There are two ways of grinding: the dry way and the wet way. It can be divided into tabular type and flowing type according to different ways of expelling mine.
To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.

Working Principle

Quite simply, the longer the ball mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs. Our ball mills have been used to grind glass, powder food products, create customized varnishes, make ceramic glaze, powder various chemicals, and make black powder.

Structure

The machine is composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control). The quill shaft adopts cast steel part and the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance. The machine is with stable and reliable working condition. Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.
