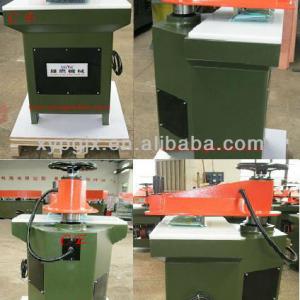

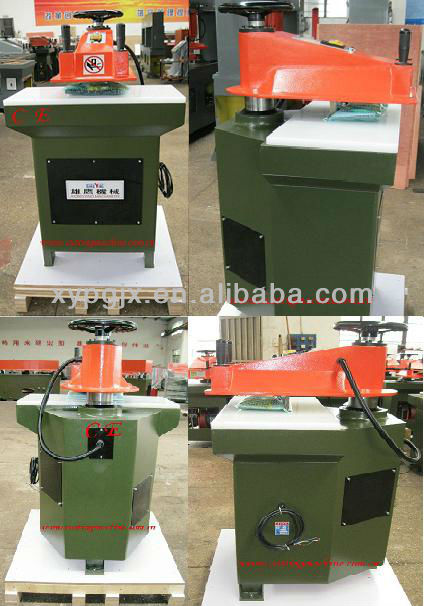

CE Hydraulic Swing Arm Die Cutting Machine

Die Cutting Machine, 1, CE certificate, 2, operation easy & safe, 3, good quality , competitive price, 4, perfect after sale - details see: https://www.machineto.com/ce-hydraulic-swing-arm-die-cutting-machine-10267396
Place of Origin:Jiangsu China (Mainland)Brand Name:CHAOYINGModel Number:XYJ-2/12After-sales Service Provided:Overseas third-party support available
type:Die Cutting Machine
CE Hydraulic Swing Arm Die Cutting Machine
contact supplier for CE Hydraulic Swing Arm Die Cutting Machine


Die cutting machine

CE Hydraulic Swing Arm Die Cutting Machine

Usage and characteristics

1. This machine is mainly suitable for cutting materials like leather, plastic, cloth leather bags, toys, hats, spongy floss pieces floor materials, soft wood pieces and materials meeded cutting out.

2. The swing arm can swing freely flexible, best operation line of sight, especially suitable for laying-off and cutting of true skin.

3. The adoption of double-hand operation ensures safety for operators.

4. The pilar equipped with self-lubricating system doesnneed any hand lubrication, the machine usage life hence is improved.

5. The hydraulic system operates under enclosed environment, it requires little to the working envirinment.

Main technical parameters

Maximum cutting force

12Tons

Distance from upper

pressing board to worktable

50-110mm

Size of the upper pressing board

340×410mm

Size of the lower cutting board

770*410mm

Main motor power

0.75kW

Electric Supply Voltage

3x440/400/380/220/200V ,50/60 Hz

Net weight

450kgs

Gross weight

550kgs

Dimension

900*900*1600mm

Remark:We can make the machine according to your specifical order ,

for example the color,the motor information ,the working table etc.

CE Hydraulic Swing Arm Die Cutting Machine
Packaging Detail:standard wooden box packing
Delivery Detail:within 15 days
