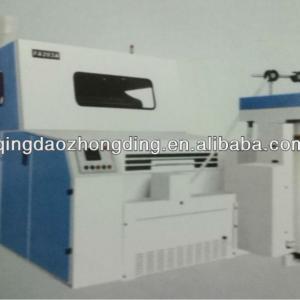

carding machinery FA203A

carding machinery FA203A, 1. Practical Function, 2. Aesthetic design - details see: https://www.machineto.com/carding-machinery-fa203a-10279020

Condition:New	Type:Wool	Place of Origin:Shandong China (Mainland)	Brand Name:ZD
Model Number:FA203A	Voltage:AS YOUR REQUEST	Power(W):8.84KW	Weight:5500KG
Dimension(LWH):LxW4468X2735mm	Certification:ISO9001:2000	Warranty:ONE YEAR	After-sales Service Provided:Engineers available to service machinery overseas

1. Chracteristics

Main features
Second-ranking microcomputer control and industrial touch screen display relevant parameters. But flat flowers by copying itself replaced brush roller on knife chop. Second-ranking special jig, high strength, easy adjustment, facilitating large leak bottom removal The machine adopts the factory itself design production of new rack. Second-ranking avoided wallboard closed-end round wallboard flowers. Second-ranking brand-new appearance design, the beauty is generous. Second-ranking cotton lap or cotton box to double feeding. 40 seconds cylinder brake itself. (the user chooses) organization The machine itself more and get some continuous suck. In Washington, and stop five test device. Hung back, enhance flat second-ranking, improve the cotton nets quality. Second-ranking tin remain fascinating questions, improve precision structure optimization design. Before and after the number of fixed flats and set second-ranking hung board. Second-ranking can observe the cotton net aprons guide cotton device.

Electric control
There are one imported invers in the electronic control cabinet of card FA203A .it contronic doffer's and feed motor's speed to make a stepless variable speed and run it at the rate,with a smooth speed up and down and a good brake performance,it is running steady and reliable. The imported display screen is erected on safety cover in the left front of maching, It can control each motor. It can display all data on dynamic technology and take an alarm for all faults and full-can status. Control center of whole machine is a imported programmable controller,which operates simply and reliably.

2. Main technical parameters

Technical specifications
Applicable		The machine is suitable for fiber length 22 ~ 76 mm cotton, chemical fiber and its blending.
output		80kg/h
sliver count		3.5~6.5(kg/m)
feed weight		400~1000(kg/m)
working width		1000mm
total draft		60~300
licker-in diameter		φ250mm
licker-in speed		756 833 942 1025r/min 771 800 872 949r/min 647 712 805 877r/min
doffer diameter		φ706mm
doffer speed		8.9~89r/min
cylinder diameter		φ1288mm
cylinder speed	cotton man made dibers	344 379 429 467r/min 300 331 374 407r/min
no.of revolving		32/86
flat speed	interval Spinning fiber	82~338mm/n71~294mm/min
Additional carding		After the taker-in plate, plate, former fixed cover
Adjusted cylinder diameters for height		φ600,φ1000mm 1100,1200mm
Continuous aspiration		air3500m3/h
Export static pressure (absolute value)		>-920pa
Compressed air		4~5kg/cm3
Air consumption		0.01m3/h
Total installed power		8.84kw
Main transmission motor		5.5kw
Doffer transmission motor		2.2kw
Cleaning roller motor		0.37kw
Cleaning roller is flat flowers motor		0.37kw
To cotton motor		0.4 kw
Safety cover form		The fully closed
Area (long x width)		4468×2735mm(φ600coiler) 4670×2120mm(φ1000coiler)
Machine net weight		5500kg
