braiding machinery

best price, 80 series , 90series ,110series ,130series,160series ,168series ,224series,384series,500series,biggest in China. - details see: https://www.machineto.com/braiding-machinery-10272613
Place of Origin:Jiangsu China (Mainland)Brand Name:HenghuiModel Number:90 series ,110 series ,130 series ,160serieshorn gear size:80mm,90mm,110mm,130mm,168mm,224mm,300mm,500mm
material:sepcial cast ironmodel:3spindles to 200spindlesproductions:braided ropes,lace,cable ,glassfiber sleeving,cord,band,stringspinle and bobbin material:nylon66
motor and inverter:Danvers Groupservice:agents in different countriesMachine Type:Braiding MachineCertification:CE
Material Capabilities:FiberProduct:braided ropes
braiding machinery
contact supplier for braiding machinery


NO.

ITEMS

90series

UNIT PRICE

FOB USD

DETAILS


1

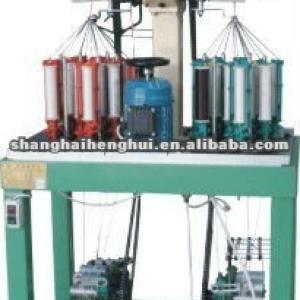

High speed 4 head 16 spindle braiding machine

Rectangle type

Square type with the take-up spool

Bobbin size

Total length 157mm

Inner length 139mm

Dia of disk 48mm

Inner hole 13mm

Horn gear 90mm

Spindle speed 106 RPM

Motor 0.75kw

Pitch size1-6mm

Dimension

1.44X0.75X1.5meters

Weight 550kgs

green color

from 3 spindle /carrier to 200 spindle/carrier machines!

Merit of braiding machine :

Adopting frequency control ,possess auto-stop system ,wrapped centre yarn feeder ,low waste and high production.low wear and tear of spare parts,the work table runs stable,easy to maintain and operate.

braiding machinery
Packaging Detail:plywood case
Delivery Detail:10-30days
