1) 4 axes toothbrush tufting machine, 2) High precision toothbrush tufting machine;, 3) Can make kinds of different brushes - details see: https://www.machineto.com/bm-cnc4z01y-4-axes-toothbrush-tufting-machine-10325633

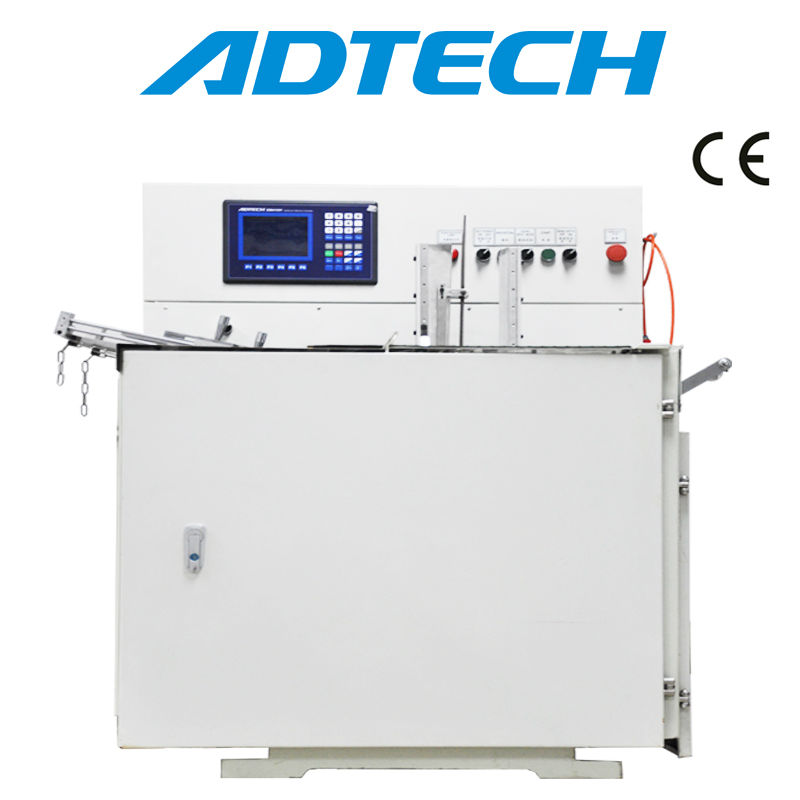

1) This type of 4-axis toothbrush tufting machine is applicable to massive manufacturing of various toothbrushes.

2) The working table of this 4-axis toothbrush tufting machine consists of straight-line rail and ball screw, this enables the machine working with high-precision and it is solid and durable.

3) Movement of axes run by brushless servo motors or step motors and managed by the new electronics package which includes: High performance controller that executes the real time control of the machine.

4) The interface of computer is single color 5.7" LCD screen with English edtion. It is user-friendly and quite easy to operate.

5) It is available for memorizing 2000 models and each model can have 100000 holes. This fuction enables user to make various kinds of brushes.

6) New diagnostic system which informs and helps the operators to detect and solve any failures in the working cycle.

7) Editing functions of processing data, such as ADD, ALT,INSERT,DELETE, makes it convenient to solve these problems: the deviation of hole position, hole-repeating and hole-missing.

8) "Teach-in" self-learning function for the creation of new models.

• BM-CNC4Z01Y Toothbrush Machine Features

The stroke of X aixs	48mm
The stroke of Y axis	25mm
Material of Brush Handle	Plastic, wood
Material of Brush Filament	PP, nylon, PET or other fiber
Compressed Air Pressure	0.6-0.8PM
Diameter of Holes	1.5-2.8mm
Output capacity	1500 toothbrush/hour approximately
Colors of Brush Filament	Single color or double colors
Motor (Power System)	We could use brushless servo motor or step motor
Teaching-mode	"Teach-in" self-learning function for the creation of new models.
Lubrication and maintenance	Centralized lubrication system to reduce down time and maintenance to a minimum
Speed Adjusting	Frequency-conversion stepless-adjustable speed
Power Supply	Single-phase 220v or 3-phase 380v, 50-60Hz , 3KW
Automatic continuous cycle working period	24 hours
Overall dimension(L*W*H)	1400*1250*1250mm
Gross weight	750 KG
Packing	Wooden case
