Blister Packing Production Line

1) Medicine Packaging Production Line, 2)DPH-260H blister packing machine, 3)XWZ-200 cartoning machine, 4)Siemens PLC System - details see: https://www.machineto.com/blister-packing-production-line-10053967
Type:Blister Packaging Machine,Packaging LineCondition:NewApplication:Machinery & HardwareAutomatic Grade:Automatic
Driven Type:ElectricVoltage:380VPower:50HZPlace of Origin:Zhejiang China (Mainland)
Brand Name:HOPINGModel Number:DPH260H-XWZ200Dimension(L*W*H):9930*1680*1750(mm)Weight:6000kg
Certification:CEWarranty:1 YEARAfter-sales Service Provided:Engineers available to service machinery overseasPackaging Material:Plastic
Blister Packing Production Line
contact supplier for Blister Packing Production Line

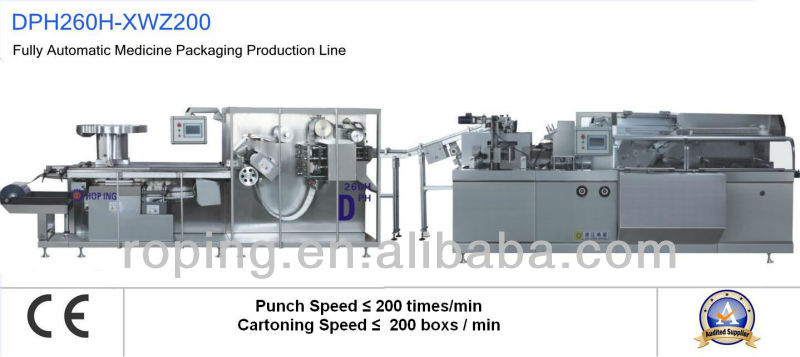

Fully Automatic Medicine Packing Production Line

***DPH-260H Blister Packing Machine+XWZ 200 Cartoning Machine

Ⅰ DPH-260H Blister Packing Machine

Specifications:

1) Suitable for packing tablet, capsule ,etc.
2) Max Punching speed :200times/min
3)High-end configuration
4)CE Certification

Main Technical Parameter:

Capacity(punch/time)60-200
Range of stroke (mm)20-120
Clean compressed air0.5-0.7Mpa
Air consumption(m³/min)≥0.5
PowerAC380V 50HZ 15.5KW
Water chiller for moulds1.5P with 60L/h consumption
Dimension(L-W*H)(mm)4860*1070*1750
Net weight (kg)3000

Ⅱ XWZ 200 Cartoning Machine

According to the latest demand of the market, scientific research technicians of our company designed and

developed the line machine, which is specially for al/pl blister,pillow bag and packing into cartons.

Main Technical Parameter:

Capacity(box/min)60-200
Box dimension(mm)(70-200)*(35-70)*(15-70)
PowerAC380V 50HZ 5KW
L*W*H(mm)4070*1680*1680
Weight(kg)3000

Packaging & Delivery

Payment

  1. T/T
  2. L/C
  3. West Union

About us

Blister Packing Production Line
Packaging Detail:WOODEN CASE
Delivery Detail:45-60days
