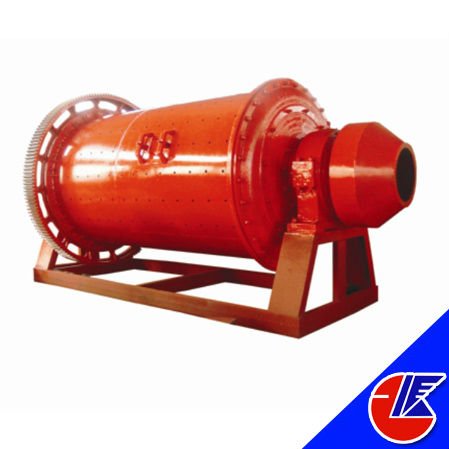

Best stone, ore grinding ball mill machine for sale (Factory offer)

Best stone grinding ball mill machine:, 1. CE,ISO,CQC, 2.energy saving, durable, 3.in charge of installation, 4.1 year warranty - details see: https://www.machineto.com/best-stone-ore-grinding-ball-mill-machine-for-sale-factory-offer-10314411

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):130kw
Capacity(t/h):3.5-6	Place of Origin:Henan China (Mainland)	Brand Name:Zhongke	Model Number:1500*5700
Dimension(LWH):diameter:1830mm; length:4500mm	Weight:24.7t	Certification:CE,CQC,ISO	Warranty:1year
After-sales Service Provided:Engineers available to service machinery overseas	Product Type:ball mill	Company Type:manufacturer	Shell Rotation Speed:28 r/min
Ball Load:12t	Feeding Size:<=25	Discharging Size:0.074-0.4mm	Color:yellow, red, white or as required
Price:negotiable	Payment Terms:30% T/T, 70% before shipment	Translator:English, Russian, Spanish, German etc.

We put you first. And make you ahead.

(We offer ball millspare partsat anytime.)

Energy saving ball mill machine is applicable for grinding all kinds of ores and other materials, widely used in mineral separation, building material and chemical industries, includingdry-type ore grindingandwet-type ore grinding. According to different discharging methods, it is divided intograte ball millandoverflow ball mill.

Application of ball mill machine:

Energy saving ball mill is a kind of key equipment for milling the materials into powders after they are crushed.

It is widely used in cement, the silicate product, new type building material, fire-proof material, chemical fertilizer, black and non-ferrous metal, glass, ceramics and so on, and can make the dry and wet milling on all kinds of ores and other grindability materials.

Working Principle of ball mill machine:

♦This series ball mill is a kind of grate energy saving ball mill, with horizontal cylinder rotating device, two cabins, and outer side of gear transmission.

♦The material enters spirally and evenly into the first warehouse of the milling machine through the input material hollow axis from the feeding device. In this warehouse, there are stepped liners or corrugated liners, and different specification steel balls are put inside. When the barrel body rotates and then produces centrifugal force, the steel balls are carried to certain height and then fall down to make the material struck and grinded.

♦After coarse grinding in the first warehouse, the material then enters into the second warehouse in which the plane liner is located for regrinding with the steel ball. The powder is discharged by output board and the final products are completed.

Features of ball mill machine:

Energy saving ball mill is made up offeeding part, discharging part, gyre part, transmission part, (decelerator, small transmission gear, generator, electrical control)and so on.The hollow axis adopts the cast steel and the lining can be replaced. The big rotating gear processes in the way of casting rolling gear. The cylinder is wearable well and bears wearable lining board. This machine runs steadily and works reliably.

Technical Parameter of ball mill machine:

Model	Shell rotation speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity (t/h)	Motor power(kw)	Weight(t)
Model	Shell rotation speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity (t/h)	Motor power(kw)	Weight(t)
Ø900*1800	36-38	1.5	≤20	0.075-0.89	0.65-2	18.5	4.6
Ø900*3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	5.6
Ø1200*2400	36	3	≤25	0.075-0.6	1.5-4.8	30	12
Ø1200*3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Ø1200*4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ø1500*3000	29.7	7.5	≤25	0.074-0.4	2-5	75	15.6
Ø1500*4500	27	11	≤25	0.074-0.4	3-6	110	21
Ø1500*5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
Ø1830*3000	25.4	11	≤25	0.074-0.4	4-10	130	28
Ø1830*4500	25.4	15	≤25	0.074-0.4	4.5-12	155	32
Ø1830*6400	24.1	21	≤25	0.074-0.4	6.5-15	210	34
Ø1830*7000	24.1	23	≤25	0.074-0.4	7.5-17	245	36
Ø2100*3000	23.7	15	≤25	0.074-0.4	6.5-36	155	34
Ø2100*4500	23.7	24	≤25	0.074-0.4	8-43	245	42
Ø2100*7000	23.7	26	≤25	0.074-0.4	8-48	280	50
Ø2200*4500	21.5	27	≤25	0.074-0.4	9-45	280	48.5
Ø2200*6500	21.7	35	≤25	0.074-0.4	14-26	380	52.8
Ø2200*7000	21.7	35	≤25	0.074-0.4	15-28	380	54
Ø2200*7500	21.7	35	≤25	0.074-0.4	15-30	380	56
Ø2400*3000	21	23	≤25	0.074-0.4	7-50	245	54
Ø2400*4500	21	30	≤25	0.074-0.4	8.5-60	320	65
Ø2700*4000	20.7	40	≤25	0.074-0.4	12-80	400	94
Ø2700*4500	20.7	48	≤25	0.074-0.4	12-90	430	102
Ø3200*4500	18	65	≤25	0.074-0.4	-----	800	137
