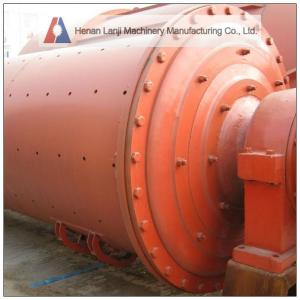

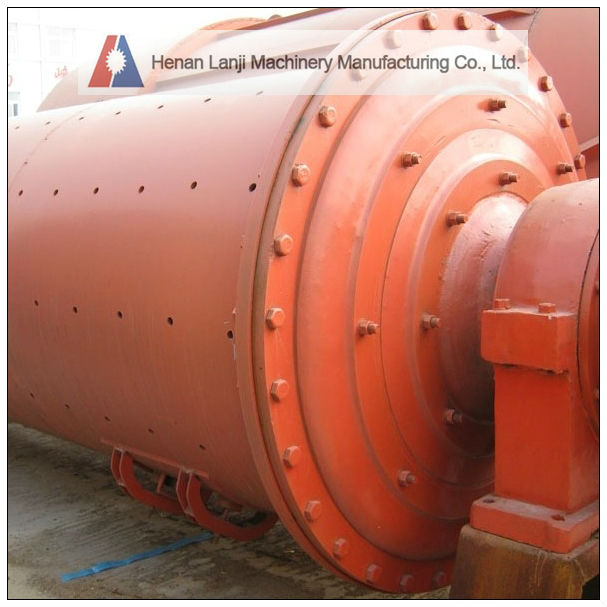

Best selling energy saving ball mill from China manufacturer

energy saving ball mill:, 1.wet or dry ball mill, 2.overflow or grate ball grinder, 3.high efficiency, 4.rich experience - details see: https://www.machineto.com/best-selling-energy-saving-ball-mill-from-china-manufacturer-10314806

Condition:New	Type:Ball Mill,energy saving ball mill	Motor Type:AC Motor	Power(W):7.5-300 Kw
Capacity(t/h):0.65-2	Place of Origin:Henan China (Mainland)	Brand Name:Lanji	Model Number:900*1800
Dimension(LWH):6.52.53.2 m	Weight:3-80 T,3.6T	Certification:ISO9001	Warranty:1 Year
After-sales Service Provided:Engineers available to service machinery overseas	feeding size:<20mm	Discharging size:0.075-0.089mm	power:18.5KW
capacity:1-80t/h	Certificate:ISO9001:2000	Linner:Steel, rubber or slicon	Supply spare parts:Supply spare parts: for whole life
Colour:as request

1. Application:

Ball Mill is widely used in powder making production line in industries, like mining,building materials and chemistry industries. It is a key equipment to grind all kinds of ores and other materials, including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

2. Types:

a. dry and wet types.

b. lattice and overflow types, or center-discharge and side-discharge types

c. Bearing MiII and Bushing MiII

d. edge and center types

Notes: other type of mill, like rod mill, ceramic ball mill is also supplied.

3.Technical data

Model	Drum rotary speed (r/min)	Feeding capacity (t)	feeding size (mm)	Discharging size (mm)	Output (t/h)	Power (kw)	Weight (t)
Φ900×2100	38	1.5	≤15	0.075-0.89	0.5-2	15	3.9
Φ900×3000	38	2.51	≤15	0.075-0.89	0.8-3.5	22	5.0
Φ1200×2800	32	4.0	≤20	0.074-0.4	1.0-5.0	30	9.5
Φ1200×3000	32	4.5	≤20	0.074-0.4	1.2-5.6	37	11.5
Φ1200×4500	30	5.5	≤20	0.074-0.4	1.5-6.0	55	13.6
Φ1500×4500	27	11	≤25	0.074-0.4	4-10	95	21
Φ1500×5700	27	12	≤25	0.074-0.4	4-13	110	23.5
Φ1830×3000	24	12	≤25	0.074-0.4	5-15	130	31
Φ1830×3600	24	13	≤25	0.074-0.4	5-16	130	32
Φ1830×4500	24	14	≤25	0.074-0.4	5-18	155	33.5
Φ1830×7000	24	21	≤25	0.074-0.4	6-20	210	36
Φ2100×3600	24	21	≤25	0.074-0.4	7-35	215	39.5
Φ2100×4500	24	26	≤25	0.074-0.4	8-42	245	43.5
Φ2200×3000	21	28	≤25	0.074-0.4	8-43	245	46
Φ2200×4800	21	35	≤25	0.074-0.4	9-45	285	48
Φ2400×3000	21	23	≤25	0.074-0.4	8-60	285	55
Φ2700×4500	21	48	≤25	0.074-0.4	12-83	475	79

Thanks so much for you taking time to browse our energy-saving ball mill. Any further questions, please feel free to contact us and we are ready to so service for you!
