Best seller hysraulic hose crimper
KM-91F hose crimping machine technical parameters:, 1.Crimping force:340T, 2.Max crimping range:1/4" to 2-1/2", 3.Motor:4.4KW - details see: https://www.machineto.com/best-seller-hysraulic-hose-crimper-10339311
| Condition:New | Place of Origin:Tianjin China (Mainland) | Brand Name:YUJI | Model Number:KM-91F |
| Voltage:380V | Power(W):4.4KW | Dimension(L*W*H):720*520*1400mm | Weight:300KG |
| Certification:ISO9001;CE | Warranty:within 5 years | After-sales Service Provided:Overseas service center available | colour:orange |
KM-91F hose crimping machine technical parameters:
| 1 | Types | KM-92C (Computer Control Type) |
| 2 | Crimp force | 340T |
| 3 | Motor | Y-4.4kw |
| 4 | Voltage | 380V*50HZ |
| 5 | Displacement of plunger pump | 14.5L/min |
| 6 | Systematic pressure | 30MPa |
| 7 | hydraulic operating fluid | winter:YB-N32 |
| summer:YB-N46 | ||
| 8 | Volume of oil tank | 675×345×240 mm3 |
| 9 | L*W*H | 720×520×1400(mm) |
| 10 | Crimp range | 1/4" to 2-1/2" |

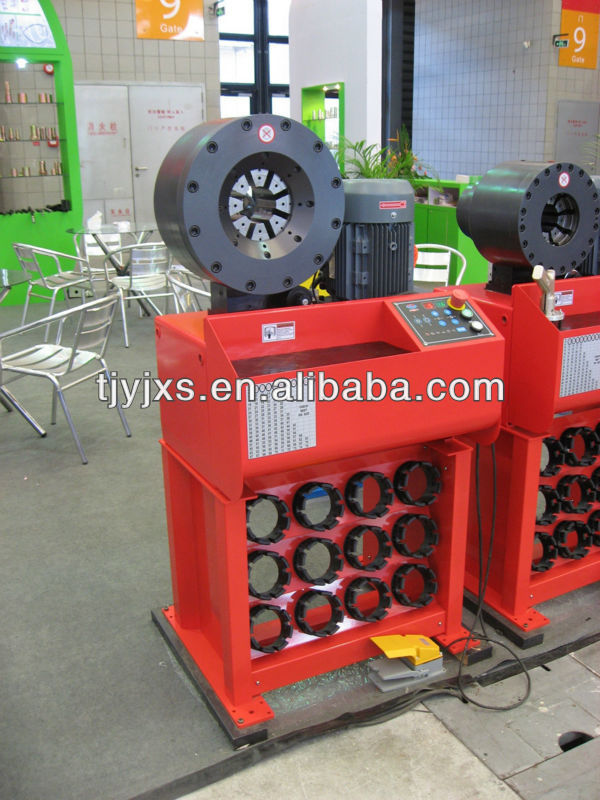

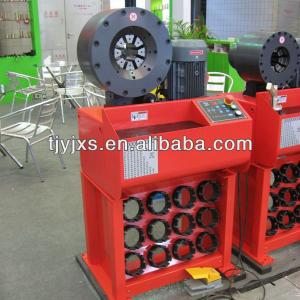

Product photo and relative certifications:
| Packaging Detail:plywood case or according to customer requests |
| Delivery Detail:within 15 days after received the prepayment from customer |
