Sand Washing machine is used to remove the dust in sand. It aims at improving the quality of sand. - details see: https://www.machineto.com/best-quality-sand-washing-machine-10320970

Sand Washeing machine Features and Benefits:sand making machinery
1. It is of simple structure. The bearing device of impeller drive is separated from water and materials with water, to avoid in a large degree that the bearings are damaged by being soaked with water, sand or some polluted things.
2. When it is used for cleaning sand in quarries, it has many advantages compared with the traditional spiral one.
3.There is little loss for medium-sized and fine sand and stone powder. The grade and the fineness of the sand for construction after being washed can be up to the national standards, such as “sand for construction” and “cobble and broken stones for construction”.
4. There are no other wearing parts except the screen mesh.5.It features long service life and few times for maintenance.

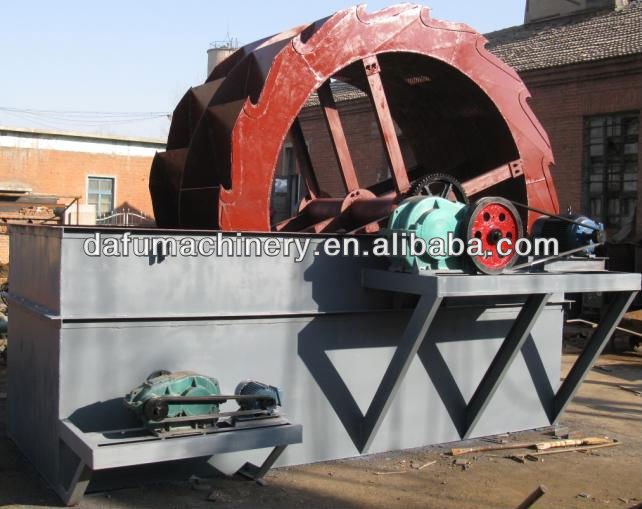

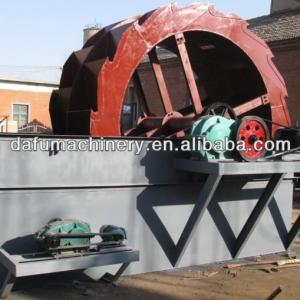

Sand Washer drives the impeller in the water groove to move like a circle transmitted by electric motor and decelerator, and then mixes, overturns, cleans and discharges the sand or slag pellets in the water groove.

Specifications of Sand Washing Machine

Models XSD2610 XSD2816 XSD3016 Impeller Specification (mm) (D×W) Φ2600×1000 Φ2800×1600 Φ3000×1600 Impeller Speed (mm) 1.178 1.177 1.179 Capacity (t/h) 20~50 30~60 50~120 Feed Size (mm) ≤10 ≤10 ≤10 Water Consumption (mm) 20~60 50~100 70~120 Electric Motor Power (KW) 5.5 11 15 Decelerator Models ZQ50-50-I-Z ZQ60-50-I-Z ZQ65-50-I-Z Overall Dimensions (L×W×H) 3255×1982×2690 3540×3000×2880 3845×3000 ×3080
