Cement mill

Introduction:

This equipment can be used to grind the hard, nodular clinker from the cement kiln into the fine grey powder.

Usage:

Cement Millis mainly used for grinding various cement clinker or other materials in building material, metallurgical, electric and chemical industries.

Sorts & Features:

a. Cement MillIt is mainly used in cycle grinding system, with features of high grinding efficiency, high production, low power consumption. Especially, when grinding slag cement, its performance is more outstanding. Generally speaking, production could be 10-20% higher, and power consumption 10% lower. Besides, product temperature could reduce 20-40and product fineness is easy to adjust.

b. High Fineness & Production Cement MillIt is mainly used in open flow grinding system, with features of simple equipment system & process flow, saving investment, less building area. Regarding structure, it has advanced & special material separating diaphragm device inside, adds activation device to fine grinding chamber, and has discharging grate plate at mill outlet, thus to reduce the size of grinding media at the most and promote the grinding efficiency highly, realize the purpose of high production & low power consumption.

Technical parameters:

Specification(Dia.*Length)(m)	Speed(r/min)	Feeding size(mm)	Capacity(t/h)	Griding media loading(t)	Main motor(kw)	Main reducer
Φ2.2*9.5	21.5	<25	14-16	41	475	ZD70
Φ2.2*13	21.5	<25	20-22	58	630	ZD80
Φ2.4*10	20.3	<25	18-20	52	630	ZD80
Φ 2.4*13	20.3	<25	22-28	68	800	MBY710/JDX710
Φ 2.6*11	19.7	<25	24-26	69	800	MBY710/JDX710
Φ 2.6*13	19.7	<25	28-32	82	1000	MBY800/JDX800
Φ 3.0*9.0	18.2	<25	28-32	78	1000	MBY800/JDX800
Φ 3.0*13	18.2	<25	33-37	108	1400	MBY900/JDX900
Φ 3.2*11	17.8	<25	40-45	110	1400	MBY900/JDX900
Φ 3.2*14	17.8	<25	45-50	138	1800	MBY1000/JDX1000
Φ 3.5*11	17.1	<25	48-53	135	1800	JS120-B/MFY180
Φ 3.5*13	17.3	<25	55-60	156	2000	JS130-A
Φ 3.8*12	17	<25	60-65	175	2500	JS130-C
Φ 3.8*13	17	<25	65-70	190	2500	JS130-C
Φ 4.0*13	16.3	<25	75-80	200	2800	JS140-A
Φ 4.2*11	15.8	<25	100-110	195	2800	JS140-A
Φ 4.2*14	15.6	<25	120-135	252	3550	JS150-B
Φ 4.6*15	15.1	<25	150-160	305	4500	JS160-D

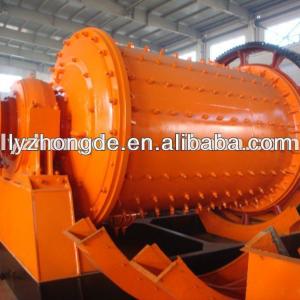

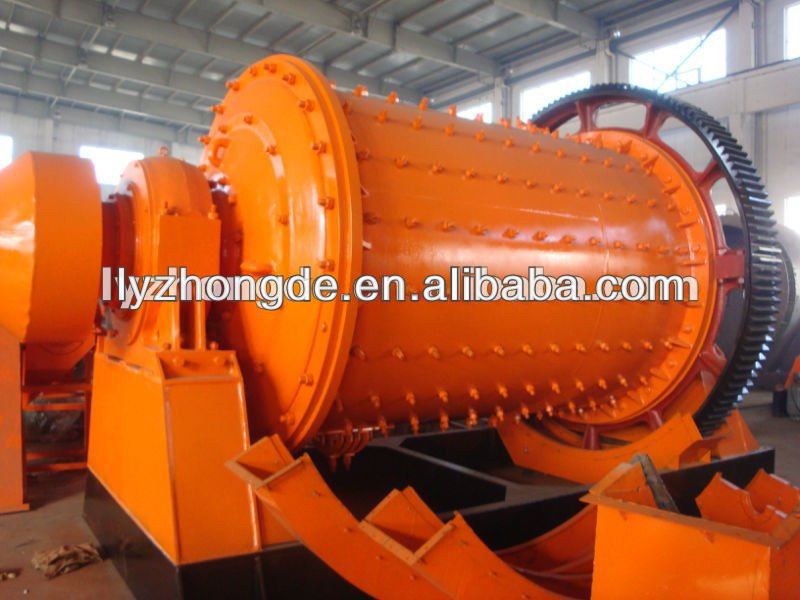

Pictures of Cement Mill
