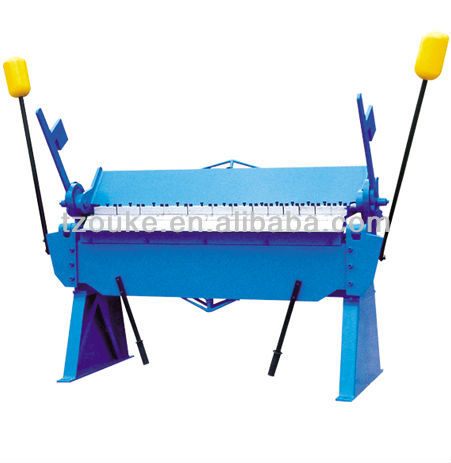

bening machine

1.With segment bending blade for the bending of box section, 2.Various widths segment shiftable setup, 3.With balanced hammer - details see: https://www.machineto.com/bening-machine-10123610

Condition:New	Place of Origin:Shandong China (Mainland)	Brand Name:TTOK	Model Number:W1220x2.5
Machine Type:Press Brake	Raw Material:Sheet / Plate Rolling	Material / Metal Processed:Carbon Steel	Power:manual
Automation:Manual	Extra Services:Machining	Certification:CE	After-sales Service Provided:Overseas third-party support available
name:hand brake

Specifications

With segment bending blade for the bending of box section
Various widths segment shiftable setup
With balanced hammer ,it

Model	Width	Thickness	Angle	Packing size	N.W/G.W
W1220*2.5	1220 mm	2.5 mm	0-135°	171×75×94cm	513/575 KG
W2040*2	2040mm	2 mm	0-135°	255×76×100cm	850/1000 KG
W2040*2.5	2040mm	2.5mm	0-135°	255×76×100cm	1145/1295 KG
W2540*2	2540mm	2.0 mm	0-135°	300×76×100cm	1190/1360KG
W2540*2.5	2540mm	2.5 mm	0-135°	300×76×100cm	1310/1480KG
W3050*2	3050mm	2.0 mm	0-135°	350×76×110 cm	1490/1690KG
