Barite Grinding Mill for 200-325 mesh barite powder in oil drilling

Barite Griding Mill for 200-325 mesh barite powder in oil drilling, 01) 200-300 mesh barite powder for oil drilling - details see: https://www.machineto.com/barite-grinding-mill-for-200-325-mesh-barite-powder-in-oil-drilling-10314262
Condition:NewType:Raymond MillMotor Type:AC MotorPower(W):according to model
Capacity(t/h):from 0.2 t/h to 20 t/hPlace of Origin:Henan China (Mainland)Brand Name:KexingModel Number:Multi Models
Dimension(L*W*H):according to modelWeight:according to modelsCertification:ISO9001-2008 CEWarranty:1 YEAR
Barite Grinding Mill for 200-325 mesh barite powder in oil drilling
contact supplier for Barite Grinding Mill for 200-325 mesh barite powder in oil drilling


Barite Grinding Mill for 200-325 mesh barite powder in oil drilling

01. Application of barite grinding mill:

Barite Grinding Mill produced by our company is mainly used to grind non-inflammable and non-explosive materials with Mohs hardness below 7 and moisture content below 6% such as barite, calcite, potash feldspar, talcum, marble, limestone, ceramic, glass, etc Raymond grinder can be used in mining, chemical industry, construction materials, metallurgy and so on. The final products can be adjusted freely from 100 mesh to 425 mesh.

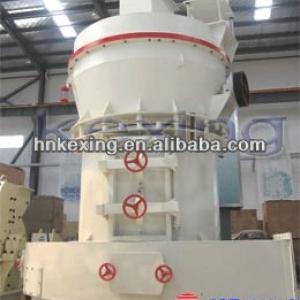

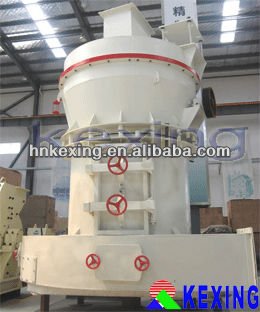

02. Detailed Photos of Barite Grinding Mill:

Barite Grinding Mill for 200-325 mesh barite powder in oil drilling
03. Working Principle of Barite Grinding Mill:
Firstly, raw material is crushed by jaw crusher to the size required, then elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between the ring and rollers to accomplish the grinding.After grinding, the rough materials will be recycled by the air from the fan back into the grinding chamber for regrinding and the fine powders are blew into the cyclone and poured out through the output-powderipe as the final products.

Barite Grinding Mill for 200-325 mesh barite powder in oil drilling

04. Specifications of Barite Grinding Mill:

Model
Roller
Number
Roller
Size
mm)
Maximum Feed Sizemm)
Fineness of final productmm)
Outputt/h
Main
Frame
power
(kW)
Fan power
(kw)
Overall
Dimension(mm)
5R4119
5
410×190
20-25
0.613-0.044
5-12
75
55
7850×8000×9700
4R3216
4
320×160
20-25
0.28-0.047
1.0-8.0
37
30
9900×5800×10580
4R2715
4
270×150
15-25
0.28-0.047
0.8-4.0
22
18.5
8700×5000×7819
3R2715
3
270×150
15-20
0.28-0.047
0.7-3
22
18.5
8700×5000×7819
3R2615
3
260×150
15-20
0.28-0.047
0.5-2.7
18.5
15
5650×3305×5950
3R2115
3
210×150
15-20
0.28-0.047
0.4-1.6
15
11
4500×2800×5800
3R1410
3
140×100
5-10
0.28-0.047
0.1-1.0
7.5
5
3200×2100×4500

Any change of technical data shall not be advised additionally.

05. Barite Grinding Mill Plant (Barite Powder Making Plant):

Work Flow: Barite Rock --> Jaw Crusher --> Bucket Elevator --> Hopper --> Vibrating Feeder -->Barite Grinding Mill -->Screw Conveyor --> Bucket Elevator --> Silo --> Trucks or Bags.

06. Working Field Photos of Barite Grinding Mill Plant (BaritePowder Making Plant)

07. Spare Parts of Barite Grinding Mill:

Barite Grinding Mill for 200-325 mesh barite powder in oil drilling
Packaging Detail:exporting standard
Delivery Detail:30 days
