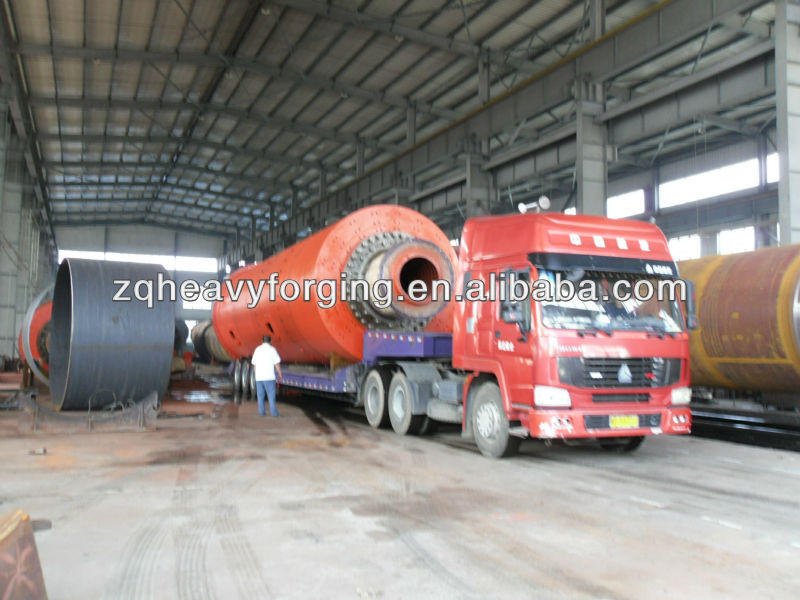

Ball mill special designed for South America processing plant

Raw material Mill is widely used for grinding(drying plus grinding) cement raw materials or other materials used in building material, metallurgical, electric power ad chemical industries.

1. Sorts and features:

(1). Common raw material mill It is the same with diminutive and medium-sized grinding cement raw material system, often use in the circularity grinding system with select powder outside the mill.

(2). Air-swept mill The feature of Air-swept mill is short and thick, large neck-doameter of enter and emerge-material shaft, big area of the partition wall’s aperture between dry storehouse and grinding storehouse, no fine-toothed comb board on the rail of the mill, so the resistance of the aeration is small, the wind speed in the grinding storehouse can reach 5m/s,in a position to a mass of high-temperature.

(3). Tail discharge and Exaltation circulate mill Its basal emerge-material thread-drying storehouse to grinding storehouse’s tail part with mechanical method. Afterwards, delivers into select-powder machine with upgrade machine, the thick material returns into the mill for circle grinding.

(4). Middle discharging and exaltation Circulate Mill It is combined with Air-swept Mill and Tail-discharging and Exaltation Circulate Mill from dry action; from the grinding action, it is correspond a second-grade circularity grinding system. There is drying store house in the mill’s forepart; it has very good dry effect. Raw material go into the front of the mill, the returned material from select-powder machine goes ino thick-grinding and fine-grinding storehouse form the forepart and end-part. The material comes out from the middle-part, delivers into select-powder machine with upgrade machine. A majority of material goes into the fine-grinding storehouse and the rest goes into the thick-grinding storehouse.

Technical parameter of raw material mill

Standards	Φ2.2*7	Φ2.2*7.5	Φ2.2*8	Φ2.2*9	Φ2.4*7	Φ2.4*8	Φ2.4*9	Φ2.6*8
T/h Pro.capacity	20-25	22-26	23-27	24-28	24-28	28-32	30-35	40-45
r/min Rotary sped	21.4	21.4	21.4	21.4	20.9	20.9	20.9	19.9
mm Feeding size	<25	<25	<25	<25	<25	<25	<25	<25
T Magnitude of grinding media	33.5	34	35	37	37.5	42	44	47
Drive style	Edge	Edge	Edge	Edge	Edge	Edge	Edge	Edge
kw Power of main motor	380	380	475	475	475	570	570	630
Main reduceer	ZD70	ZD70	ZD70	ZD70	ZD70	ZD80	ZD80	ZD90
(T) Weight	53	56	61	67	73	79	87	112

Standards	Φ2.6*8.5	Φ2.6*9	Φ2.6*10	Φ3.0*9	Φ3.0*11	Φ3.2*10	Φ3.2*11	Φ3.4*7.5
T/h Pro.capacity	48-50	50-55	55-60	55-60	60-65	60-65	70-80	50-55
r/min Rotary sped	19.9	19.9	19.9	18.28	18.2	18.2	18.2	17.56
mm Feeding size	<25	<25	<25	<25	<25	<25	<25	<25
T Magnitude of grinding media	49	51	66	80	100	100	108	65
Drive style	Edge	Edge	Edge	Edge	Edge	Edge	Edge	Edge
kw Power of main motor	630	800	800		1250	1400	1600	1000

Jinan Minchang New Energy Equipment Co., Ltd,as the branch company of Zhangqiu Heavy Forging Co., Ltd, is the professional manufacturer of ball mill, lifting hook group, transformer oil tank and steel structure products. Based on the powerful capacity of forging and machining, the main accessories can be done from forging to finish machining by our own, which reduce the cost by a large degree.

Our factory covers an area of 60,000 sm, and are equipped with advanced processing equipments, which include: 5*20m plasma cutting saw machine 3stes, 8m CNC hydraulic guillotine machine, 8m CNC hydraulic press brake, rail type shot blasting machine, CNC steel plate pre-treatment line, CNC open-book leveling line,δ120*3m plate bending roller,Φ6.5*30m barrel processing equipment, 4m vertical lathe, screw type water spray paint room, CNC machine center and so on. Also various methods of inspection can be done.

Our company possesses the Product Quality Certificate awarded by theQuality Inspection Supervision Center of National Hoisting and Conveying Machinery of China, and is qualified to produce 160T Class S and below, 200T Class T and below lifting hook group.

Paul Jing

Sales manager

Jinan MinChang New Energy Equipment Co.,Ltd

Zhangqu Heavy Forging Co.,Ltd

Add: Puji Town, Zhangqiu County, Shandong, China

Tel: 0086-13853179741

Fax: 0086-531-61321918

Email: zqforging at live dot cn

Skype: zfshine
