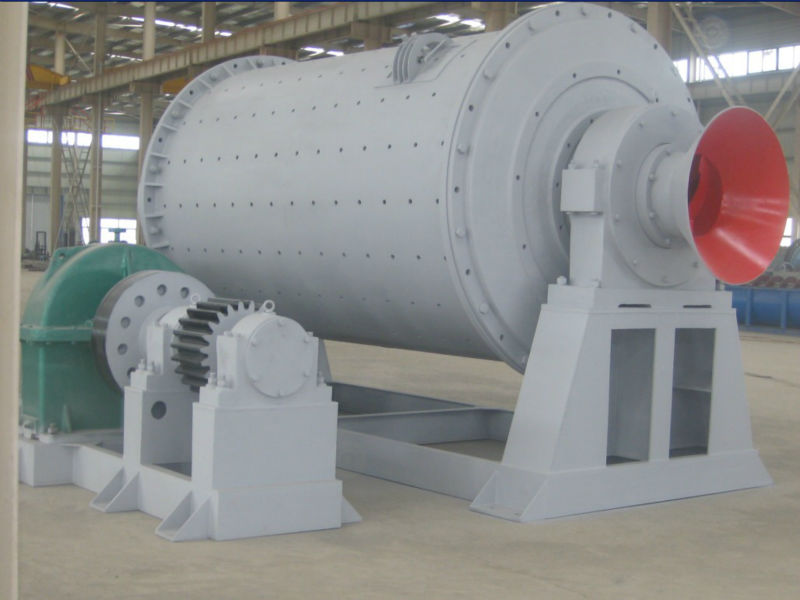

Ball mill sold to more than 30 countries

Ball mill, 1.sold to more than 30 countries, 2.popular in Middle East,South Africa,Asia,etc, 3.ISO&CCC, 4.OEM is acceptable - details see: https://www.machineto.com/ball-mill-sold-to-more-than-30-countries-10313953

Condition:New	Type:Ball Mill,ball mill	Motor Type:AC Motor	Power(W):18.5-800KW
Capacity(t/h):1-100t/h	Place of Origin:Henan China (Mainland)	Brand Name:BAILING	Model Number:900X1800-3200X4500
Dimension(LWH):all	Weight:3.6-137t	Certification:3C&ISO9001	Warranty:1 year
After-sales Service Provided:Engineers available to service machinery overseas	Capacity:0.5-70t/h	Power consumption:energy-savig type	Liner:rubber, ceramics, silica, Mn steel, ect
Installation:guide by our engineers	Guarantee:for one year	QA/AC:ISO9001:2008,CCC	Application:Ore

Ball millis a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc. And the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.

Our ball mills can satisfy different requirement, and have good features such as low consumption, high capacity per hour, no pollution to the enviroment around, easy to be repaired.

We have the good service to our customers, if they can't install the machines, we can send our technician come to your location, and install for you. We make every endeavor to satisfy our customers.

Working Principle:
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Technical Parameter:

Model	Speed of bucket (r/min)	Weight of ball (t)	Size of feed opening (mm)	Size of output size (mm)	Production (t/h)	Power (kw)	Weight (t)
φ900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
φ900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
φ1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
φ1200×3000	32	5	≤25	0.074-0.4	1.6-5	45	12.8
φ1200×4500	32	7	≤25	0.074-0.4	1.6-5.8	55	13.8
φ1500×3000	27	8	≤25	0.074-0.4	2-5	90	17
φ1500×4500	27	14	≤25	0.074-0.4	3-6	110	21
φ1500×5700	27	15	≤25	0.074-0.4	3.5-6	132	2407
φ1830×3000	24	11	≤25	0.074-0.4	4-10	180	28
φ1830×6400	24	23	≤25	0.074-0.4	6.5-15	210	34
φ1830×7000	24	25	≤25	0.074-0.4	7.5-17	245	36
φ2200×5500	21	30	≤25	0.074-0.4	10-22	370	48.5
φ2200×6500	21	30	≤25	0.074-0.4	14-26	380	52.8
φ2200×7500	21	33	≤25	0.074-0.4	16-29	475	56
φ2400×3000	20.6	15.5-15.6	≤25	0.074-0.4	15-55
φ2400×4500	21	30	≤25	0.074-0.4	15-60
φ2700×4000	20.6	40	≤25	0.074-0.4	20-80
φ2700×4500	20.7	48	≤25	0.074-0.4	20-90
φ3200×4500	18	65	≤25	0.074-0.4	According to different tech
