1,intermittent ball mill made in China, 2,1500*4500, 3,supply spare part for whole life, 4,ISO 9001-2008, 5,low price - details see: https://www.machineto.com/ball-mill-made-in-china-intermittent-ball-mill-10314212

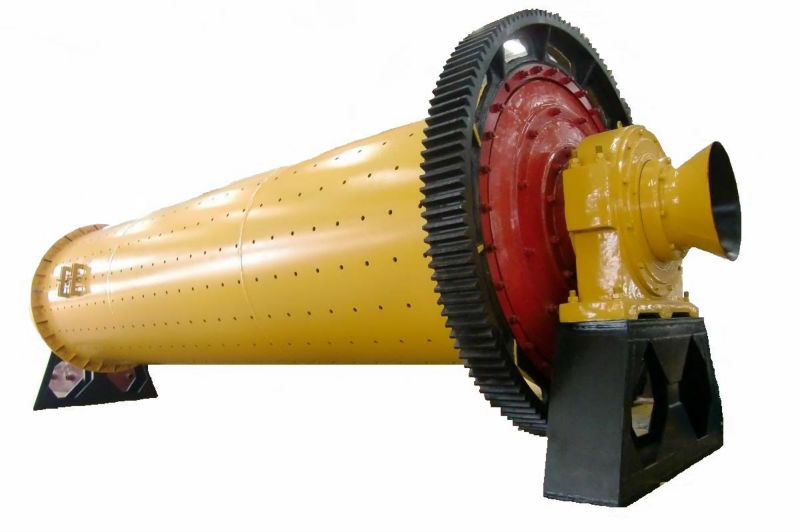

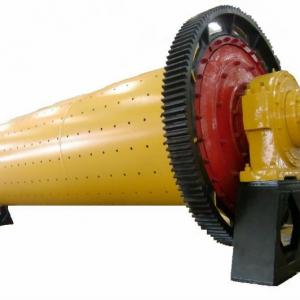

1,Ball mill made in China , model is 1500*4500 ,capacity is 12t per hour.

Model	1500*4500
Capacity	12t per hour
Power	110 KW
Weight	21t
Feeding size	25mm
Discharge	0.074mm
Ball loading	14t
Speed	27 r/min

2,Ball mill China:
We have dry grinding and wet grinding ball mill
Diameter from 900mm-3200mm
rubber, steel, ceramics liner

3,Ball Mill China usage:

Ball mill is widely used in ore dressing plant, dry power grinding plant such as clinker, flyash, quartz and etc. it is machine which grind raw material into powder.It has adjustable fineness from 0.074-0.4mm.

4,Ball mill china structure:

it is composed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control).

5,we have many specifications of ball mill , also we have many types .

Model	shaft rotation speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity(t/h)	Power(KW)	Weight(T)
Φ 900 × 1800	38	1.5	≤ 20	0.075 -0.89	0.65 -2	18.5	3.6
Φ 900 × 2100	38	1.3-1.4	≤ 15	0.075 -0.83	0.7 -3.5	18.5	3.9
Φ 900 × 3000	38	2.7	≤ 20	0.075 -0.89	1.1-3.5	22	4.5
Φ 1200 × 2400	32	3.8	≤ 25	0.0745-0.6	1.5-4.8	30	11.5
Φ 1200 × 2800	32	3.3-3.5	≤ 25	0.0745-0.6	2-6	30	13
Φ 1200 × 4500	32	7	≤ 25	0.074 -0.4	1.6-5.8	45	13.8
Φ 1500 × 3000	27	8	≤ 25	0.074 -0.4	2-5	75	17
Φ 1500 × 3500	27	6.75 -6.4	≤ 25	0.075 -0.4	3-7	75	17.5
Φ 1500 × 4500	27	14	≤ 25	0.074 -0.4	3.5-12	110	21
Φ 1500 × 5700	27	15	≤ 25	0.074 -0.4	3.5-8	115	24.7
Φ 1830 × 3000	24	18	≤ 25	0.074 -0.4	4-10	130	28
Φ 1800 × 3600	24	10.6 -11.35	≤ 25	0.075 -0.4	5-22	130	33.5
Φ 1830 × 7000	24	25	≤ 25	0.074 -0.4	7.5-17	210	36
Φ 2100 × 3600	22	14-15.2	≤ 25	0.075 -0.4	15-36	370	46.8
Φ 2200 × 5500	21	30	≤ 25	0.074 -0.4	10-20	210	48.5
Φ 2200 × 6500	21	31	≤ 25	0.074 -0.4	14-26	380	52.8
Φ 2200 × 7500	21	33	≤ 25	0.074 -0.4	16-29	380	56
Φ 2400 × 3000	20.6	15.5 -16.6	≤ 25	0.075 -0.4	22-24	245	59
Φ 2400 × 4500	21	30	≤ 25	0.074 -0.4	8.5-60	380	65
Φ 2700 × 3600	20.6	39	≤ 25	0.074 -0.4	12-70	400	91.3
Φ 2700 × 4000	20.7	40	≤ 25	0.074 -0.4	12-80	400	94
Φ 2700 × 4500	20.7	48	≤ 25	0.074 -0.4	12-90	430	102
Φ 3200 × 4500	18	65	≤ 25	0.075 -0.4	according to the technics	800	137

6,if you are iteresting in our ball mill please kindly contact us , i supply my best offer .

my name is David , skype ID: david2012888

+86 187 9026 3827
