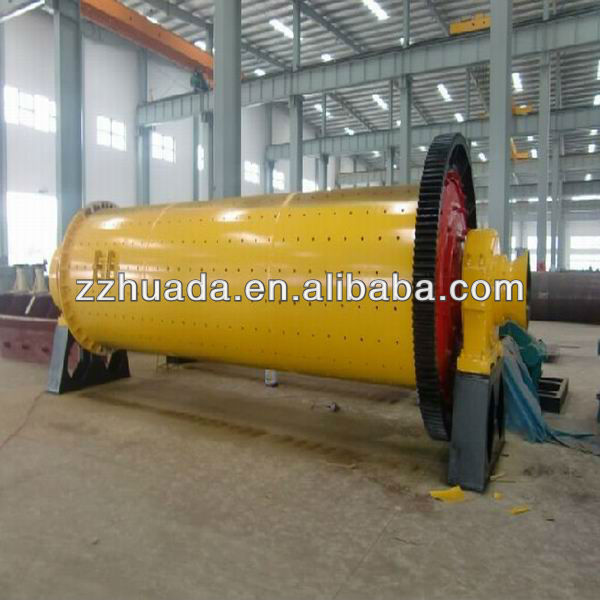

ball mill for 100TPH dolomite grinding powder product line in Malaysia market

ball mill, 1.Stable and reliable working condition, 2.Good wear-resistance, 3.Low energy cost, 4.ISO9001:2008 - details see: https://www.machineto.com/ball-mill-for-100tph-dolomite-grinding-powder-product-line-in-malaysia-market-10313885

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Capacity(t/h):50-100
Place of Origin:Henan China (Mainland)	Brand Name:huaye	Model Number:HY3013	Application:grinding kinds of ore
power consumption:energy-savig type	liner:rubber, ceramics, silica, Mn steel, ect	max feeder:25mm	quality:China standard, high quality
motor:Chinese famous brand or as request	State:Stationary	Spare Parts:supply the whole life	installation:under engineer's instruction
Guarantee:one year

ball mill for 100TPH dolomite grinding powder product line in Malaysia market

contact supplier for ball mill for 100TPH dolomite grinding powder product line in Malaysia market

Huaye brand Cement Mill/Raw material mill

1.Usage of cement mill:

Cement millalso named as ballmill,raw material mill, material grindingmilland clinkermill, is the key equipment for grinding after the crush process, which is widely used in the manufacture industries, such as cement, silicate, new building material, refractory material, fertilizer, ferrous metal, nonferrous metal and glass ceramics, and can be used for the dry and wet grinding for all kinds of ores and other grind-able materials

2.Structure of cement mill:

Cement millis composed of feeding part, discharging part, turning part and driving part (reducer, small driving gear, electric motor and electric control)

The quill shaft adopts cast steel part and the liner is detachable.

The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner, which has good wear-resistance

The machine is with stable and reliable working condition

Moreover, according to different materials and discharging methods, there are dry ballmills and wet ballmills for choice

3.Technical parameters of Cement mill series:

Specific-ation(m)	Milling form	Transmission form	Gear box		Motor power(kw)	Capacity(t/h)	Weight(t)
Specific-ation(m)	Milling form	Transmission form	Type	Speed reduction ratio	Motor power(kw)	Capacity(t/h)	Weight(t)
Ø1.83*7	Open flow	Brim	ZD60	4.5	245	6.5-8	36
Ø2.2*7.5	Circle flow	Brim	ZD70	5	380	8-10	56
Ø2.2*11	Open flow	Central shaft	D110	35.5	630	12-13	104.6
Ø2.2*13	Open flow	Central shaft	D110	35.5	630	16-18	114
Ø2.4*13	Open flow	Central shaft	D110	35.5	800	20-23	171.5
Ø2.6*13	Open flow	Central shaft	MFY100	19.5	1000	28-32	149.7
Ø3*9	Circle flow	Brim	D125	41.2	1000	28-36.5	136.4
Ø3*11	Circle flow	Central shaft	D140	42.8	1250	36-47	180
Ø3.2*13	Open flow	Central shaft	D140	36.5	1600	45-50	198
Ø3.8*13	Open flow	Central shaft	MFY250	16.5	2500	60-62	204
Ø4.2*13	Open flow	Central shaft	JQS3550	15.6	3530	85-87	254
