This machine can improve the milling of the granule and the quality dealt with is inc reased by 15%-20%. - details see: https://www.machineto.com/ball-mill-10314150

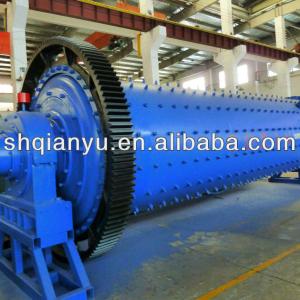

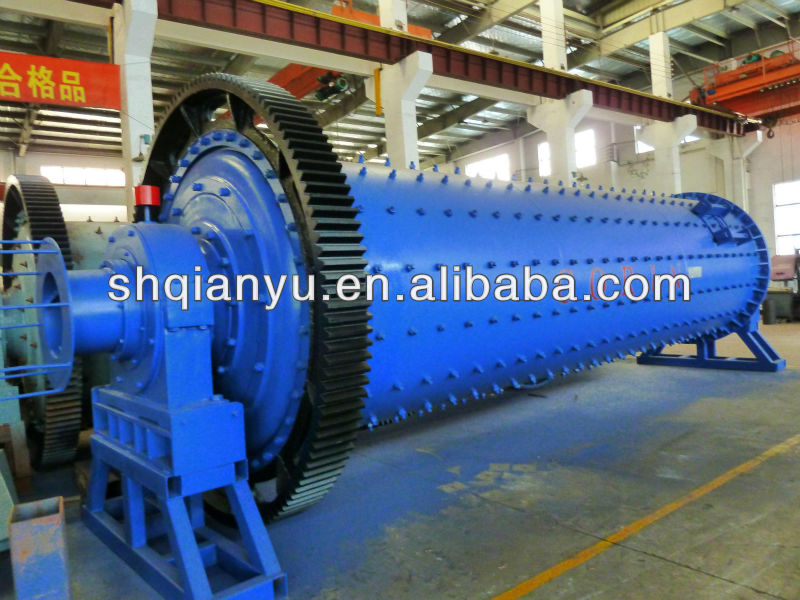

This machine changes the instrinsic grinding machinestructure.its is body and ground plank are integral whole so when fixing.It can be lowered on a plane surface once only use double tired rol ler axletree with grille pattern forcing evacuation is instead by overfall patten controlling one.This can improve the milling of the granule and the quality dealt with is inc reased by 15%-20%.

Main Technical Parameters:

Code	Diameter Cylinder(mm)	Length of Bucket(mm)	Speed of bucket(mm)	capacity(T/h)	Material out size(mm)	Put the ball heavy(T)	Motor		Weight(T)
							Model	Power(kw)
φ900×1800	900/675	1500/300	42	0.4-1.5	0.075-0.6	1.4	Y160L-6	11	3.5
φ900×2100	900/376	1800/300	41	0.6-1.6	0.075-0.6	1.73	Y180L-6	15	3.9
φ900×3000	900/675	2700/300	41	1-2.6	0.075-0.6	2.5	Y200L2-6	22	4.9
φ1200×2800	1200/900	2400/400	32	1.4-5.5	0.075-0.6	4	Y225M-6	30	8.6
φ1200×4500	1200/900	4100/400	32	1.5-6.8	0.075-0.6	5.2	Y280S-6	45	12
φ1500×3000	1500/1200	2500/500	31	2.8-10	0.075-0.6	7.5	YR280S-6	55	14.2
φ1500×3500	1500/1200	3000/500	31	3.3-11	0.075-0.6	8.2	YR280M-8	75	15.6
φ1830×3600	1830/1500	3000/600	26.5	4-16	0.075-0.6	11	YR355M3-8	160	32
φ1830×4500	1830/1500	3000/600	26.5	4.2-18	0.075-0.6	12	YR355M3-8	185	35
φ2100×3600	2100/1670	3000/600	24.2	7-38	0.075-0.6	19	YR555M3-8	185	40
φ2200×3600	2200/1700	3000/600	19	8.5-44	0.075-0.6	25	JR137-8	210	44
φ2400×3600	2400/1800	3000/600	15	10-53	0.075-0.8	32	JRQ1410-8	370	51
