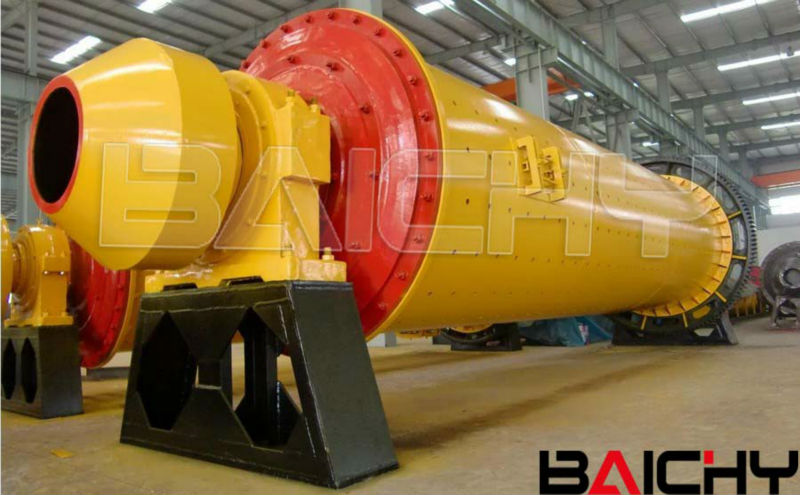

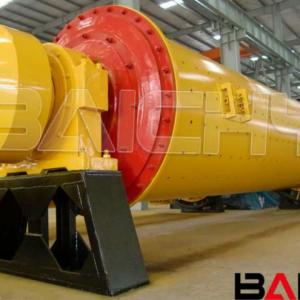

Ball Mill

Ball mill:, 1.simple structure and convenient maintenance;, 2.large capacity;, 3.Installation and adjustment are very convenient - details see: https://www.machineto.com/ball-mill-10314022

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Place of Origin:Henan China (Mainland)
Brand Name:BAICHY	Certification:ISO9001:2008	Warranty:1 year	After-sales Service Provided:Engineers available to service machinery overseas

Ball Mill

Brief introduction:

Ball Mill is mainly used to grind materials in mineral, cement, refractory, chemical industry, etc. Ball Mill has dry and wet ways. When wet Ball Mill works, certain water and other liquid will be added into materials to increase flowability of materials, so the capacity is increased. When dry Ball Mill works, capacity is affected because material flowability is reduced, so absorbing wind device is needed on the outlet of Ball Mill, and then negative pressure is formed in the Ball Mill to increase flowability of material, so the capacity is increased.

Features:

1. Large application range, simple structure and convenient maintenance.

2. Large capacity and continuous work are very obvious.

3. Barrel lining and grinding media can apply various abrasive materials.

4. Installation and adjustment are very convenient and easy to be operated.

Technical Parameters:

Model	Speed (r/min)	Max. weight of balls (t)	Input size (mm)	Output size (mm)	Power (Kw)	Capacity (t/h)	Weight (t)
Φ900×1800	37	1.8	≤15	0.075-0.4	15	0.5-2	3.4
Φ900×2100	37	2.3	≤15	0.075-0.4	18.5	0.4-2	3.9
Φ900×3000	35	3.85	≤25	0.075-0.4	30	1.1-2.5	7.78
Φ1200×2400	35	4.6	≤25	0.075-0.4	30	1.3-3.2	8.65
Φ1200×2800	35	5.4	≤25	0.075-0.4	37	1.5-3.7	10.02
Φ1200×4500	35	8.6	≤25	0.075-0.4	45	2.7-6.79	14
Φ1500×3000	29	9	≤25	0.047-0.4	75	3.3-8.2	14.12
Φ1500×3500	29	10.5	≤25	0.047-0.4	75	3.3-8.5	15.64
Φ1500×4500	29	13.5	≤25	0.047-0.4	90	4.5-12	20
Φ1500×5700	29	17	≤25	0.047-0.4	110	2.6-14	21.5
Φ1830×3000	24	13.5	≤25	0.047-0.4	135	4-15	28
Φ1830×3600	24	14	≤25	0.047-0.4	135	4-15	29
Φ1830×4500	24	20	≤25	0.047-0.4	155	4-19	32
Φ1830×7000	24	31.5	≤25	0.047-0.4	210	6-22	36.5
Φ2100×3000	22	18	≤25	0.047-0.4	210	6.4-28	40.79
Φ2100x3600	22	20	≤25	0.047-0.4	210	7-28	42
Φ2100×4000	22	21.5	≤25	0.047-0.4	210	7.6-28	43.45
Φ2200×3600	21.7	25	≤25	0.047-0.4	245	5.2-32	44
Φ2200×7000	21.7	46	≤25	0.047-0.4	380	15-38	63
