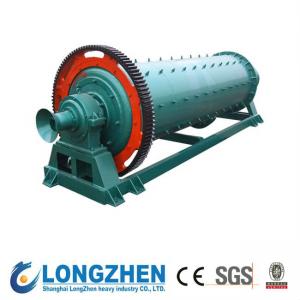

Ball Mill

ball mill advantages, 1.high efficiency of grinding, 2.low failure rate, 3.prosper design and convenient usage. - details see: https://www.machineto.com/ball-mill-10313905

Condition:New	Type:Ball Mill	Motor Type:AC Motor	Power(W):18.5-800kw
Capacity(t/h):3-90	Place of Origin:Shanghai China (Mainland)	Brand Name:longzhen	Model Number:ball mill
Dimension(LWH):3200*4500	Weight:3.6-137t	Certification:CE/SGS/BV/ISO	Warranty:main frames 3 years,bearings 1 year
After-sales Service Provided:Engineers available to service machinery overseas	Model:ball mill	Color:Optional	Certificate:CE/SGS/BV
CQC:ISO	Price:Negotiable	Application:Ore/Cement

Longzhen Ball Mill Brief

Ball Mill Features

1.High efficiency of grinding

2.Low failure rate

3.Prosper design

4.Convenient usage

Ball Mill Introduction

Ball millis key equipment for re-crushing of crushed materials,widely used in production of cement,silicate products,new type building materials,refractory materials,chemical fertilizer,ferrous metal and non-ferrous metal ore dressing,glass and ceramics,dry or wet grinding of various ores and other materials of grindability.

Ball Mill Working Principle

Ball millis a horizontal crown rotating device,extension gear transmission,materials evenly enter from the feed device through compound-into-air shaft screw into first mill barn.It is equipped with ladder steel plate or corrugated liner,built in different specifications of steel balls,centrifugal force rotating cylinder produces brings steel ball to a certain height and falls,pounding and abrading on materials.After coarse grinding in the first barn,materials enter into the second barn by single compartment,which is lined with flat plate,builds in balls,putting the materials to further grind.Powder is discharged through the discharging board operator to complete the grinding operation.

Ball Mill Technical Specifications

ball mill	Rotational speed (r/min)	Ball weight (t )	Feeding size (mm)	Discharging Size (mm)	Capacity (t/h)	Motor power (Kw)	weight (t)
Φ900*1800	38	1.5	<20	0.075-0.89	0.65-2	18.5	3.6
Φ900*2100	38	1.3-1.4	<15	0.075-0.83	0.7-3.5	18.5	3.9
Φ900*3000	38	2.7	<20	0.075-0.89	1.1-3.5	22	4.5
Φ1200*2400	32	3.8	<25	0.075-0.6	1.5-4.8	30	11.5
Φ1200*2800	32	3.3-3.5	<25	0.075-0.6	2-6	30	13
Φ1200*4500	32	7	<25	0.074-0.4	1.6-5.8	45	13.8
Φ1500*3000	27	8	<25	0.074-0.4	2-5	75	17
Φ1500*3500	27	6.75-5.4	<25	0.074-0.4	3-7	75	17.5
Φ1500*4500	27	14	<25	0.074-0.4	3.5-12	110	21
Φ1500*5700	27	15	<25	0.074-0.4	3.5-8	115	24.7
Φ1830*3000	24	18	<25	0.074-0.4	4-10	130	28
Φ1800*3600	24	10.6-11.35	<25	0.074-0.4	5-22	130	33.5
Φ1830*7000	24	25	<25	0.074-0.4	7.5-17	210	36
Φ2100*3600	22	14-15.2	<25	0.074-0.4	15-36	370	46.8
Φ2200*5500	21	30	<25	0.074-0.4	10-22	210	48.5
Φ2200*6500	21	31	<25	0.074-0.4	14-26	380	52.8
Φ2200*7500	21	33	<25	0.074-0.4	16-29	380	56
Φ2400*3000	20.6	15.5-16.6	<25	0.074-0.4	22-44	245	59
Φ2400*4500	21	30	<25	0.074-0.4	8.5-60	380	65
Φ2700*3600	20.6	39	<25	0.074-0.4	12-70	400	91.3
Φ2700*4000	20.7	40	<25	0.074-0.4	12-80	400	94
Φ2700*4500	20.7	48	<25	0.074-0.4	12-90	430	102
Φ3200*4500	18	65	<25	0.075-0.4	according to craftwork conditions	800	137
