mining machinery features, 1.high grinding capacity, 2.easy operation, 3.low energy consumption, 4.ISO9001, CE,CCC - details see: https://www.machineto.com/ball-grinder-mining-machinery-10314496

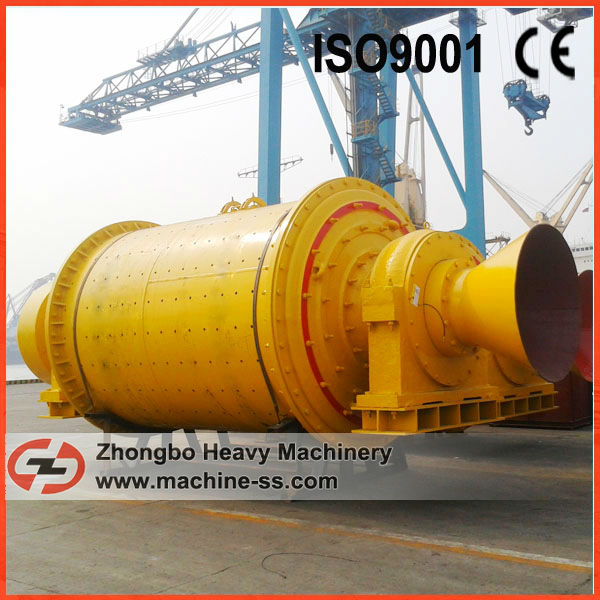

ball grinder mining machinery

Jiangsu Zhongbo ball Millhas the advantages of high efficiency, fine powder, big capacity, stable operation and easy maintenance.

I. Ball grinder mill mining machineryWorking Principle:

The ball grinder mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

II.Ball grinder mill mining machineryApplication:

Ball grinder mill is widely used in powder making production line in industries, like mining,building materials and chemistry industries. It is a key equipment to grind all kinds of ores and other materials, including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

III. Ball grinder mill mining machineryFeatures:

1) is an efficient tool for grinding many materials into fine powder.
2) The ball grinder mill is used to grind many kinds of mine and other materials, or to select the mine
3) ball grinder mill is widely used in building material, and chemical industry.
4) There are two ways of grinding: the dry way and the wet way.
5) ball grinder mill can be divided into tabular type and flowing type according to differentexpelling mine
6) To use the ball grinder mill, the material to be ground is loaded into the neoprene barrel that contains grinding media.
7) As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
8) The longer the ball grinder mill runs, the finer the powder will be.
9) Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball grinder mill runs.

10) Our ball grinder mill have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals.

IV. Ball grinder mill mining machineryTechnology data

Model	Rotary speed(r/min)	Ball load(t)	Feeding size(mm)	Discharging size(mm)	Capacity (t/h)	Motor power(kw)	Weight(t)
Ø900*1800	36-38	1.5	<=20	0.075-0.89	0.65-2	18.5	4.6
Ø900*3000	36	2.7	<=20	0.075-0.89	1.1-3.5	22	5.6
Ø1200*2400	36	3	<=25	0.075-0.6	1.5-4.8	30	12
Ø1200*4500	32.4	5	<=25	0.074-0.4	1.6-5.8	55	13.8
Ø1500*3000	29.7	7.5	<=25	0.074-0.4	2-5	75	15.6
Ø1500*4500	27	11	<=25	0.074-0.4	3-6	110	21
Ø1830*3000	25.4	11	<=25	0.074-0.4	4-10	130	28
Ø1830*4500	25.4	15	<=25	0.074-0.4	4.5-12	155	32
Ø2100*7000	23.7	26	<=25	0.074-0.4	8-48	280	50
Ø2200*4500	21.5	27	<=25	0.074-0.4	9-45	280	48.5
Ø2200*7500	21.7	35	<=25	0.074-0.4	15-30	380	56
Ø2400*3000	21	23	<=25	0.074-0.4	7-50	245	54
Ø2400*4500	21	30	<=25	0.074-0.4	8.5-60	320	65
Ø3200*4500	18	65	<=25	0.074-0.4	-----	800	137

For more model and technical information, please contact with us directly.
