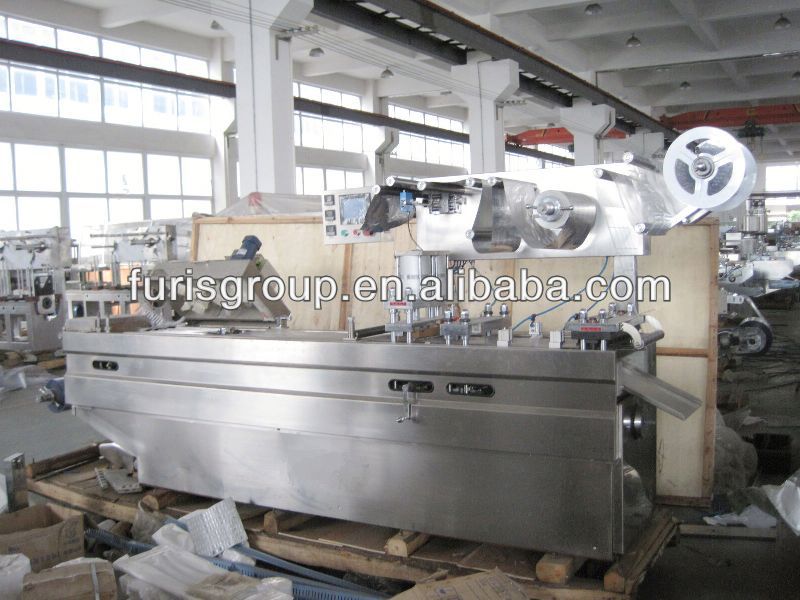

automatic liquid and solid filling packing machine can form,fill,seal blister for packing liquid,paste,granule,powder - details see: https://www.machineto.com/automatic-liquid-and-solid-filling-packing-machine-10053551

automatic liquid and solid filling packing machine Applying:

automatic liquid and solid filling packing machine can form,fill,sealing blister for packing liquid,paste,granule,powder through change feeder

automatic liquid and solid filling packing machineFeatures:

1) The machine body adopt guide track structure instead of housing window localization.
Moulds such as forming, heat seal, punch can be adjusted willingly on the guide track,
suitable for different size plates, easy adjust, good adaptability, high accuracy.

2) Mechanism hands for traction, stroke adjustable, easy operation, stable running.

3) With parallelaxes bevel gears reducer, avoid loosen or slippage caused by chain or belt.

4) Mould location by pin, easy change mould.

5) Frequency converter speed change, punch frequency 6-35 adjustable

6) Adjustable operation panel, suitable for different plates, easy operation.

7) Can equip with PLC, touch screen, high automization,photoelectronic registration,
localize heat seal, automatic error compensation.

8) Aluminum foil reel adopt stable device, cancelled the affection of pull force change
with the ALU foil reel gradually diminish, thus it made a great role in synchronization.

9) The up and low moulds for heat seal mate each other completely, with multi level cylinder
compressing heat sealing, the net pattern show clearly, firm, and reach 100% seal.

10) Low heating temperature of up and low heating with aluminum alloy, finally make out the
plump forming blister, specially suitable for packing of hot sensitivity medicines.

automatic liquid and solid filling packing machineParameter:

No.	Item	Technical Parameter
1	Punch Frequency	10-30 times/min 1-6 blisters/time (stroke>80,blister depth>10,not ensure 30times/min)
2	Capacity	7200 blisters/h(count on 4 blisters/time,30 times/min)
3	Forming Area	240×160(mm2)(max)depth20mm
4	Stroke	Standard 20-125mm,max stroke: 160mm
5	Blister Specification	standard:80×57mm Ref spec :80×57 95×65 103×43 120×43 ( can be designed according to user's requirement )
6	Blister of each blister	Be designed according to user's requirement
7	Packing Material	PVC: 0.15-0.5×250mm PTP ALU foil: 0.02-0.35×250mm Dialysis paper : 50-100g×250mm Reel diameter: 70-76mm
8	Heating Power	Up and lower forming:1.5KW Heat sealing power:1.5KW
9	Main Motor	Y90L-6 1.5Kw
10	Pump Capability	>0.2m3(self equip) pressure:0.4-0.6Mpa
11	Mould Cooling	Tap water or recycle water: 60L/h
12	Overall Size	2980×720×1600(L×W×H)
13	Weight	About 1600kg

We can according to your product to make different automatic liquid and solid filling packing machine
