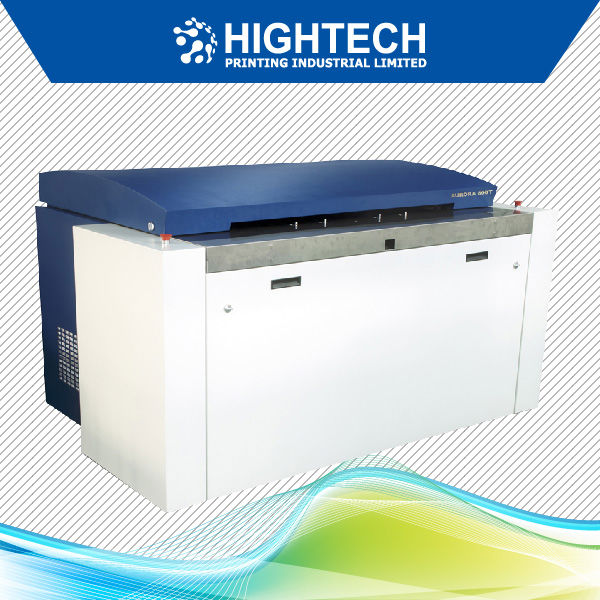

Ausetter 400 T Plate Setter

Ausetter 400 T Plate Setter, 1.Mature technology of32-64channel discrete 830nm laser diode, 2.External drum, 3.Use Thermal plate - details see: https://www.machineto.com/ausetter-400-t-plate-setter-10072914
Condition:NewType:Conventional Plate ProcessorAutomatic Grade:AutomaticPlace of Origin:Guangdong China (Mainland)
Brand Name:AMSKYModel Number:Ausetter 400 T SeriesVoltage:Single phase:200V-240VPower(W):Max power(Peak value):4KW
Dimension(L*W*H):1,900*1,200*1,000 mmWeight:800 kgCertification:GB/T19001-2000 idt ISO9001:2000 StandardWarranty:12 months
After-sales Service Provided:Engineers available to service machinery overseas
Ausetter 400 T Plate Setter
contact supplier for Ausetter 400 T Plate Setter


Ausetter 400 T Plate Setter

Technical Specifications

CTP Ausetter 400 T Specifications

ModeAusetter 400T EAusetter 400T S
Exposing Method

External Drum

Imaging System

24-channel32-channel

Discrete 830nm laser

Output Speed

16 plates/hour22 plates/hour

800×660mm 2,400dpi

Plate Size

Max.800×660mm,Min. 400×300mm

Exposing Size

Max.800×646mm

Media Type

Thermal plate

Plate Thickness

0.15mm-0.3mm

Resolutions

2,400dpi

Repeatability

±5μm(Continuous exposure over four times on the same plate with a temperature of 23°Cand 60% RH )

Interface

USB2.0/USB3.0(Recommended option is USB2.0)

Plate Loading

First manual, then auto load

Net Weight

800KG

Device Size

1,900×1,200×1,000mm(W×D×H)

Power supply

Single phase:200V-240V; Max power(Peak value):4KW

Environment

Recommended temperature: 21-25°CAllowable temperature: 18-26°CHumidity: <70%

Use conventional plate
Use conventional plate is the lowest consumable cost at present moment.

Mature and reliable technology of 32-64channel discrete 405nm laser diode
The Ausetter 800 can produce extremely sharp and clear screen dots with the conventional plate ( long running life ).It is completely daylight operation and with a stable working life over several ten thousands hours.So it comes out more cost effective.

External drum design
Using the bend and clamp technology from the printing machines.It turns out good registration and quality dots with an increditable speed up to 29 (1030X800) plate per hour.

Autofocus
Our autofocus feature can keep constant distance between the laser and plate in real time mode. That is can eliminate error arise from any irregular surface of the plate during the plate production in turns can save a lots of material and time.

Unique screen control technology
With our precise dot compensation technology we can generate distinguishable gray scale between 1 to 99 %.

Easy operation
With highspeed USB2.0 interface. Ausetter 800 can easily install and operate like a printer with the plug and play technology.

Ausetter 400 T Plate Setter

Ausetter 400 T Plate Setter
Packaging Detail:standard export packing suitable for sea shipment
Delivery Detail:30days after order confirmed
