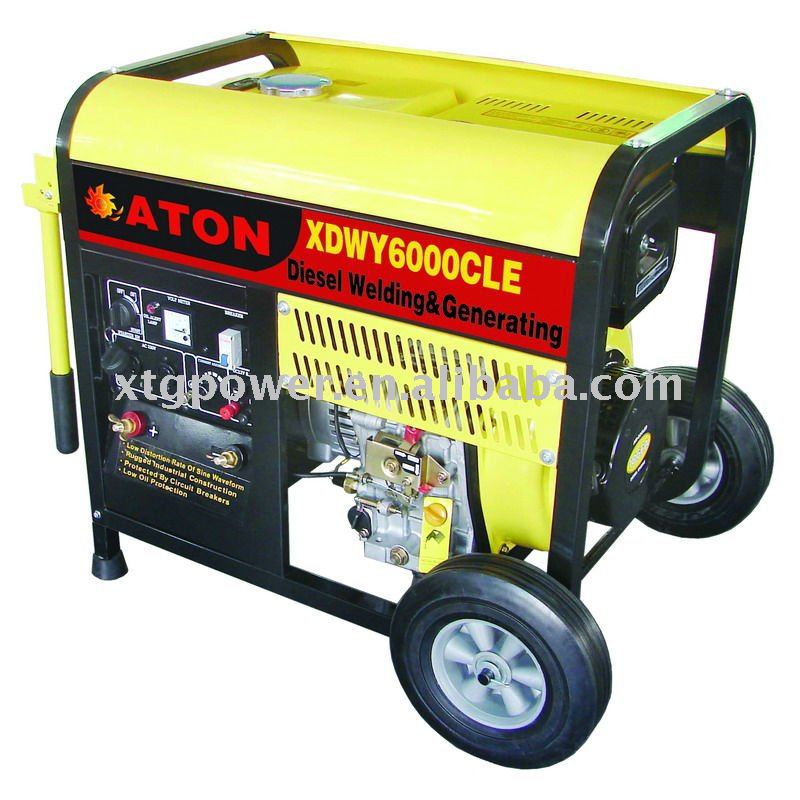

ATON 4.5/5.0KW 50-190A Electric start Air-Cooled 4-Stroke Diesel Welding Generator
1)with handles and wheels diesel welding generator, 2) 9hp diesel engine 4.5/5kw, 3) CE,EPA,SONCAP,ISO9000:20084)1 year warranty - details see: https://www.machineto.com/aton-4-5-5-0kw-50-190a-electric-start-air-cooled-4-stroke-diesel-welding-generator-10001291
| Place of Origin:Fujian China (Mainland) | Brand Name:ATON | Model Number:XDWY6000CLE |
| Open-type diesel generator with welding | ||
| Model | XDW5000CLE | XDWY6000CLE |
| FOB Fuzhou port,China | $446.00 | $500.00 |
| Frequency hz | 50/60 | 50/60 |
| Voltage | 110-240 | 110-240 |
| Rate power when welding kva | 2/2.3 | 2/2.3 |
| Welding DC A | 160 | 160 |
| Welding work voltage V | 26 | 26 |
| Welding Load continuous Ratio | 40% | 40% |
| Welding Current regulation range A | 50-190 | 50-190 |
| Factor | 1 | 1 |
| Starting mode | Electric starter | Electric starter |
| Rate Power without welding kva | 4.5/5 | 4.5/5 |
| Max.Power welding kva | 5/5.5 | 5/5.5 |
| Engine Model | 186FAE | 186FAE |
| Engine type | single cylinder, 4-stroke, air-cooled , direct injection, diesel engine. | |
| Bore*stroke mm | 86*72 | 86*72 |
| Displacement | 418 | 418 |
| Lube L | 1.65 | 1.65 |
| Fuel tank L | 12.5 | 12.5 |
| L*W*H mm | 720*510*680 | 720*510*635 |
| N/G.W kg | 105/110 | 108/113 |
| 20FT sets | 105 | 99 |
| Packaging Detail:Carton |
| Delivery Detail:25 days after receipt of deposit |
