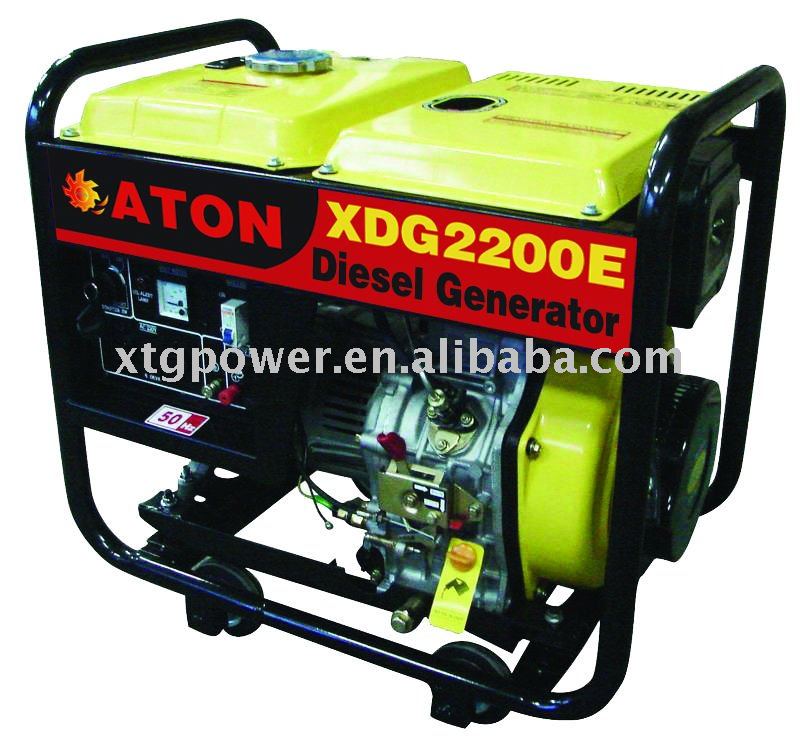

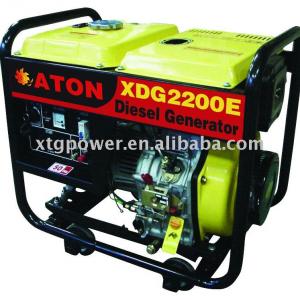

ATON 1.8/2.0kw, 4hp engine , Air-cooled , open type, Diesel Generator

1)diesel engine170F,4hp, 2)timer,remote controller, ATS battery ., 3)CE,EPA,CANSOP,ISO9001:2008 approved, 4)1 year warranty - details see: https://www.machineto.com/aton-1-8-2-0kw-4hp-engine-air-cooled-open-type-diesel-generator-10283059
Place of Origin:Fujian China (Mainland)Brand Name:ATONModel Number:XDG2200E
ATON 1.8/2.0kw, 4hp engine , Air-cooled , open type, Diesel Generator
contact supplier for ATON 1.8/2.0kw, 4hp engine , Air-cooled , open type, Diesel Generator


With/without wheel and handel as requested

ModelXDG2200/EXDG3600/EXDG5000/EXDG6000/E-3
FOB Fuzhou port,ChinaUS231.00/284.00USD288/340.00USD335/388USD348/400.00
Frame TypeOpen TypeOpen TypeOpen TypeOpen Type
Frequency(Hz)50 / 6050 / 6050 / 6050 / 60
Voltage(V)110~240220/380 110/190
Rated Power (kVA)1.8 / 2.02.8 / 3.04.5 / 5.04.5 / 5.0
Max.power(kVA)2.0 / 2.23.0 / 3.35.0 / 5.55.0 / 5.5
PhaseSingle3-phase
Power factor1.01.01.00.8
Diesel Engine Type170F/FE178F/FE186F/FE186F/FE
Max. Power Output (hp)4.0HP6.0HP9.0HP9.0HP
Diesel Engine TypeAir-cooled, 4-stroke,Vertical,Single-cylinder, Direct injection combustion.
Bore*stroke(mm*mm)70*5578*6286*7086*70
Displacement (cc)211296406406
Compression rate20:0120:0119:0119:01
Ignition SystemExplode Ignition
Lube oil systemPressure splash Type
Starting SystemRecoil or Electric
Lube oil capacity(L)0.751.11.651.65
Fuel Tank Capacity(L)12.512.512.512.5
Dimension(L*W*H)(mm)630*475*560700*475*580720*490*620720*490*620
N.W/G.W (kg)60/6578/8391/969/96
20ft(set)180160105105

ATON 1.8/2.0kw, 4hp engine , Air-cooled , open type, Diesel Generator
Packaging Detail:Carton
Delivery Detail:25 days after receipt of deposit
