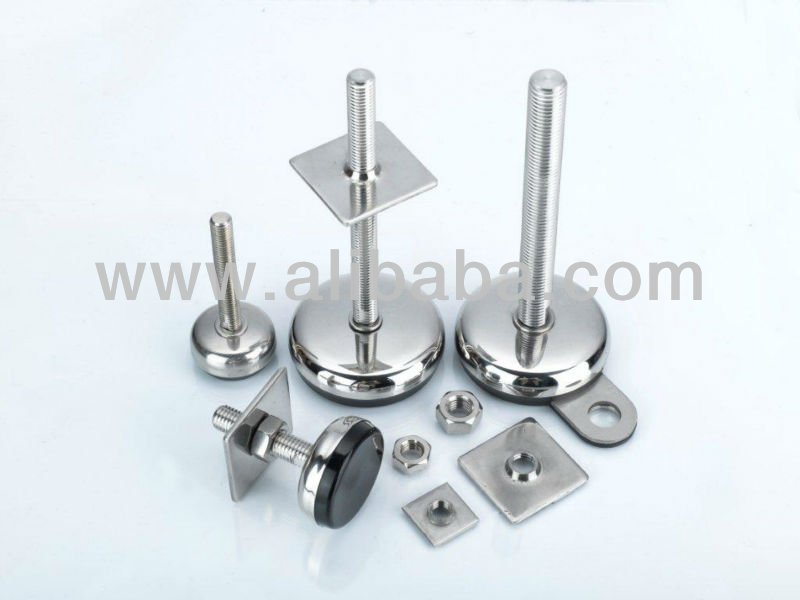

Articulated Stainless Steel feet

Hygienic stainless steel machine leveling feet with rubber base for vibration reduction and anti-slip properties - details see: https://www.machineto.com/articulated-stainless-steel-feet-10035039
Place of Origin:DenmarkBrand Name:NHKModel Number:Type MFMaterial:SUS304
Base:NBR RubberPrimary Usage:Food processing machineryOther Usage:Packaging machineryBase Diameter:50mm to 200mm
Thread Diameter:10mm to 30mmThread Height:70mm to 310mmLoad:800kgSlopes on floors and equipment:5 degree
Temperature range:-20C to +100C
Articulated Stainless Steel feet
contact supplier for Articulated Stainless Steel feet


Hygienic stainless steel machine leveling feet with rubber base for vibration reduction and anti-slip properties

The NHK articulated machine feet are available in a wide range, giving optimal flexibility of choice.

The NHK articulated machine feet has a rounded, hygienic design which makes it easy to clean.

The NHK articulated machine feet embedded rubber conforms to the guidelines stated in the USDA standard for rubber products.

The NHK articulated machine feet can cope with up to 5° slopes on floors and equipment.

Base Diameter: 50mm to 200mm

Thread Diameter: 10mm to 30mm

Base Height: 22mm

Thread Height: 70mm to 310mm

Max Load: 800kg

MATERIAL DESCRIPTIONS: STEEL

Standard: Stainless steel Aisi 304 (A2)

Accords with EN 10088: 1.4301

Tensile strength (Rm): 500-700 N/mm2

Application temperature max. 300°C

Austenitic cold formed structure

High chemical resistance

High corrosion resistance

MATERIAL DESCRIPTIONS: RUBBER FOR VULCANIZATION

Standard: NBR Rubber

FDA food approved

Temperature range: -20°C to +100°C

Hardness: Shore ~75

Colour: Black

Electrically non-conductive

High chemical resistance to commonly applied cleaning agents

Highly resistant to oils and fats

Articulated Stainless Steel feet
Packaging Detail:Strong Carton Box or Strong Wooden Box
Delivery Detail:30 days
