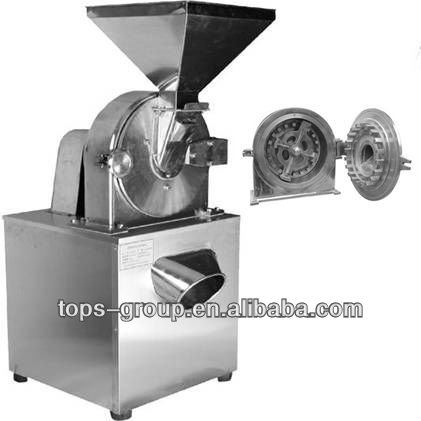

High Efficiency, Corrosion Resistance, 1,material:Ss 304, 2,parts:siemens, 3,price competitive - details see: https://www.machineto.com/arabica-green-coffee-beans-grinder-10126624

Main Use:

Grinder is mainly applied to food (sesame seeds, red dates, sugar, rice, corn, starch, oats, flour, beans, peas, lentils and spices, cocoa powder, potato powder, coffee, salt, milk, onion, dehydrated vegetables, glucose , oat hull, husk, herbal flavors and fragrances), chemical (polyethylene, PVC, polystyrene, polyvinyl alcohol, limestone, gypsum, paints, pigments) grinding, especially for oily, viscous material.

Main features:

Grinding machine inside adopts high-speed rotary grinding wheel cutter, machine inside is with large air volume, not easy to get heating. It has advantage of stable running, easy disassembly and cleaning, low noise, good effect for the smash.

Work Principle:

1. The raw material is sent into the machine hopper by the feeder conveyor, then leaks into the crashing cabin.

2. The leather belt driven by motor spurs the motional hammers whirling in a high speed, the hammers chafe, collide with the immovable fluted disc in a high speed, then the raw material is ground.

3. The ground powder will leaks from the screen stencil, gets out from the discharge hole, stored inside the bag.

Technical parameters:

Model	TP-GM-20B	TP-GM-30B	TP-GM-40B	TP-GM-60B
Capacity (kg / h)	60-100	100-300	160-800	500-1500
Feed size (mm)	<6	<10	<12	<15
Grinding fineness (mesh)	3-120
Spindle speed (r / min)	4500	3800	3400	2800
Motor Power (k w)	4	5.5	7.5	11
Weight (kg)	150	250	380	550
Dimensions (mm) (L× W× H)	960*750*1750	1000×900×1680	1200×650×1550	1350×750×1680

Our Promise

Top and consistent quality, Reliable and excellent after-sale service!
