1.ampoule filling and sealing machine ., 2.1-20ml, 3.Peristaltic Pump, 4.Touch screen, 5.GMP standard... - details see: https://www.machineto.com/ampoule-filling-sealing-10305864

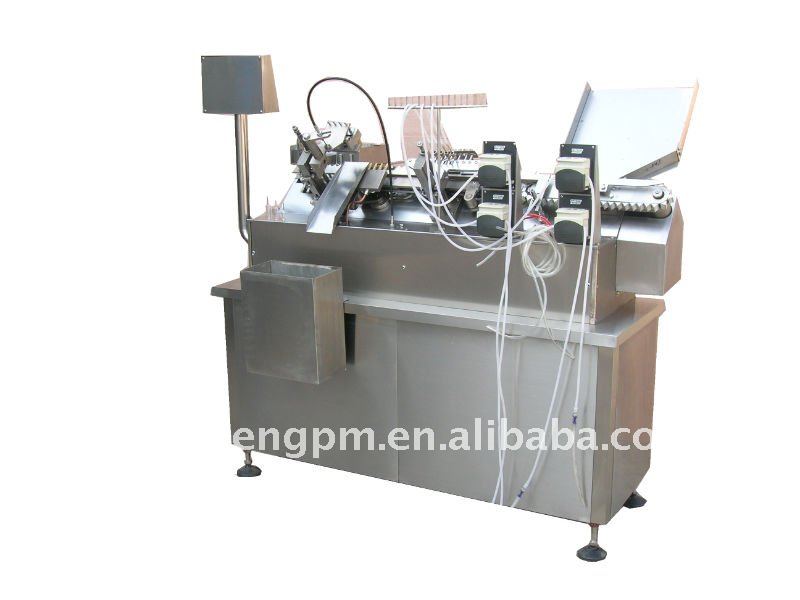

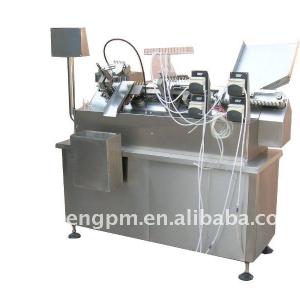

The machine is a new generation of the ampoule drawing ,filling and sealing combined equipment for injections .It adopts the rectangular feeding instead of the traditional ampoule feeding methods .In such case ,the feeding is steady with no easy broken ampoule .A modern clutch is mouthed under the ampoule feed hopper .Therefore ,the ampoule feeding can be stopped at any time while the machines is still running .So the ampoule lost can be reduced .In the part of stopping filling where changes electromagnetic switch into mechanical switch .It is reliable and durable .Bottle reverse and bottle arranging stricture are used in the device of bottle outlet .It reduces the broken rate of the finished products of ampoules tremendously..

Main technical parameters

Model	AAG6/1-2
Specification(ml)	1-2
Capacity (pcs/h)	9000-12000
Power(kw)	0.55
Fuel consumption	3-3.5m3/h(gas) 0.08-0.1MPa(LPG)
Combustion-supporting Consumption	1m3/h Oxygen 0.1MPa
Outline Dimension(L*W*H)	1500*930*1300
Machine Weight(kg)	250
Power Supply	220V 50Hz(frequency conversion)
