Alu/PVC Blister Packing Machine

Alu/pvc blister packing machine is designed and improved by our technicians according to the feedbacks of our customers. - details see: https://www.machineto.com/alu-pvc-blister-packing-machine-10053503

Condition:New	Application:Food	Automatic Grade:Automatic	Place of Origin:Jiangsu China (Mainland)
Brand Name:FURI	Model Number:DPP-140F	Usage:Outer	Type:General,Packing Machine,Blister Packaging Machine

contact supplier for Alu/PVC Blister Packing Machine

Product explanation

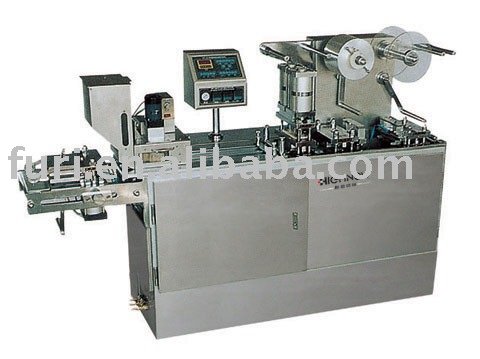

The DPP-140F machine is designed and improved by our technicians according to the feedbacks of our customers who have been using our products for many years. It is widely used in the vocation of medicine, food, electron, hardware for Alu/PVC blister packing of various nubby object and liquid. It has effect of moisture proof and dust-proof, and enhancing level and additional value of products. It can also be linked to work with pillow-type packing machine and boxing machine.

Main Characteristics:
1. Compact configuration, calm run, easy manipulation and convenient maintenance;
2. Steplessly variable frequency sped regulating, PLC circuit control panel (can be equipped with touch screen);
3. Adjustable travel, mould spout location, convenient for changing moulds;
4. Adopt manipulator grip, has accurate synchronization;
5. With cylinder heat-sealing, the upper and lower checkers ensure the effect of heat-sealing, also prolong the using life of the machine;
6. Can design any mould and feeder according to customers requirement.

Technical parameter

Punching frequency		15-32 times/min
Punching plate		2 plate/time
Adjustable scope of travel		40-110mm
Productivity		3800 plates/hour
Total power		380V 50Hz 3.2kw
Specification of material	Pharmaceutical PVC	130×0.25(0.15-0.57)mm
	PTP Al foil	130×0.02mm
Air-consumption		≥0.25m³/min
Air-pressure		0.5-0.7MPa
Overall dimension of package		2260×570×1380mm
Weight		650kg
