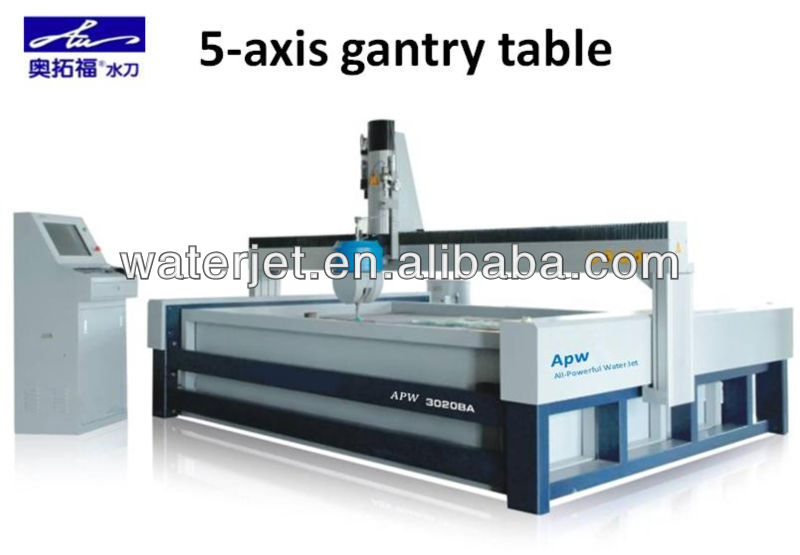

All-Powerful cnc glass cutting table

cnc glass cutting table, Z-axis and sidestay: aluminium pressing profile;CE ISO certificat - details see: https://www.machineto.com/all-powerful-cnc-glass-cutting-table-10084169
Condition:NewMachine Type:Glass Cutting MachinePlace of Origin:Liaoning China (Mainland)Brand Name:apw
Power(W):37Certification:CEWarranty:one yearapply:cnc glass cutting table
All-Powerful cnc glass cutting table
contact supplier for All-Powerful cnc glass cutting table


CE certificate

ISO9001 certificate

20 certificates

Can match multiple cutting heads

Professional water jet CNC system

Following device system

Way of drive: AC servo
Max. moving speed: 6000mm/min
Control accuracy: ±0.01mm
Cutting accuracy: ±0.1mm- ±0.2mm
Power supply: 220V 50Hz

Working environment of cutting table

Environmental temperature: -10-50°C
Atmospheric pressure: 86Kpa-106Kpa
Dust concentration: not more than 10mg/m3
There should not be acidoid, alkaline susbstance and corrosive substance in the air. The machine should be kept away from hypocenter, heat producer, intense magnetic field, electric field and other source of the disturbance.

Main technical data of cutting table

Power requirement AC220V50/60Hz
X-axis servomotor0.75KW 1.0KM 1.5KW
Y-axis servomotor0.75KW 1.0KM 1.5KWThree specification
Z-axis servomotor0.9N.m
X-axis max. moving speed6000mm/min
Y-axis max. moving speed6000mm/min
Z-axis max. moving speed1000mm/min
Control accuracy±0.1mm- ±0.2mmRelated to cutting speed, different materials and thickness of material
Repeatable positioning accuracy±0.2mm

All-Powerful cnc glass cutting table
Packaging Detail:soft packing
Delivery Detail:30 days after receipt of deposit
