air motor drive spray concrete gunite machine
air motor drive spray concrete gunite machine, 1.Variable Output with variable-frequency drive, 2.Collect Dust Bag, 3dustless - details see: https://www.machineto.com/air-motor-drive-spray-concrete-gunite-machine-10095768
| Condition:New | Max. Conveying Distance:200m | Max Aggregate Size:10 mm | Hose Inner Diameter:38 mm |
| Air Consumption:5-6M3/min | Place of Origin:Henan China (Mainland) | Brand Name:MG | Model Number:MG-3E |
| Voltage:220V | Power(W):3000 | Dimension(L*W*H):1.13*0.54*1.1m | Weight:430kg |
| Certification:ISO | Warranty:1YEAR | color:customised | rated output:1-3m3/h(or 2-6tons/h) |
| motor power:4kw |

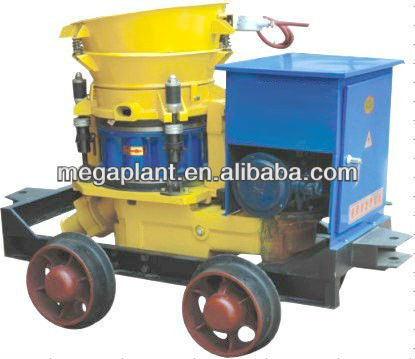

air motor drive spray concrete gunite machine
This refractory gunning gunite machine is specifically designed for Refractory Dry-mix shotcrete applications, as well as for concrete shotcrete application.With this machine, you can get low dust and high performance spraying flow in nozzle.
Character of air motor drive spray concrete gunite machine
1. Variable Output with variable-frequency drive
2. Bag cutter and flat hopper with vibrator
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coulping and clamp
7. light weight nozzle
8. Blast rubber hose
Technical parameter of air motor drive spray concrete gunite machine
Specification (with Electric motor drive): | |
| Rated Output | 1-3m3/h(or 2-6tons/h) |
| Max. Horizontal Conveying Distance | 200m |
| Max. Aggregate Size | Dia.10 mm |
| Conveying Hose Inner Diameter | 38mm |
| Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption | 5~6m3/min(180-215CFM |
| Motor Power | 4kW |
| Voltage | 3 phase,380V,50Hz |
| Material Charging Height | 1.1m |
| Rotor Speed | 13.2r/min |
| Overall Dimension(L×W×H) | 1.13×0.54×1.1m |
| Weight | 430kg |
Specification (with Electric motor drive): | |
| Rated Output | 1-3m3/h(or 2-6tons/h) |
| Max. Horizontal Conveying Distance | 200m |
| Max. Aggregate Size | Dia.10 mm |
| Conveying Hose Inner Diameter | 38mm |
| Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
| Air Consumption | 5~6m3/min(180-215CFM |
| Motor Power | 4kW |
| Voltage | 3 phase,380V,50Hz |
| Material Charging Height | 1.1m |
| Rotor Speed | 13.2r/min |
| Overall Dimension(L×W×H) | 1.13×0.54×1.1m |
| Weight | 430kg |
| Packaging Detail:WOODEN CASE |
| Delivery Detail:5DAYS |
