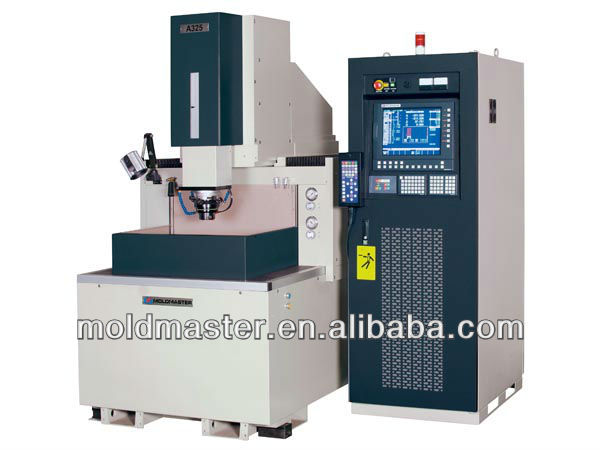

A325 EDM machine Made in Taiwan - Moldmaster

[Up & Down work tank]
When setting the adjusting workpiece or inspecting the result of the processed workpiece on the machine, it allows us to operate the work tank closely from three directions. By doing so, it achieves the design of barrier-free space. It provides a fast oil soaking & leaking. The height setting of work tank can be managed by the operators. It is time-saving & effort-saving, and it provides a very convenient operating environment.

[New Z axis' high precise head]
With high loading & high rigidity's unique main shaft design, proceeding the high-speed motion of above 3m/min over long time still can keep high precise depth size.

[Upgrade machine precision]
Working fluid temperature can be controlled under±0.5°C of machine temperature, and therefore reduce the heat displacement & drift of machine for assuring the high precise working of long-time automated operation. X, Y, Z axis will be remedied by laser, full stroke can be guaranteed with ±1μm.

[Applicable Internet transmission]
It can be applied the standard Ethernet Internet to deliver NC formula, and also support optional equipments for each software engineering technology for remedying information.

[New power supply & control system]
New type control system of discharge power supply, and in-time & stable energy adjustable technology will not be disturbed by the environment. Unique unusual discharge examining technology and high resolution's motion control will substantially strengthen the speed of working, and avoid a surface hole erosion happened. Therefore, it can be easily gained the even & precise surface.
