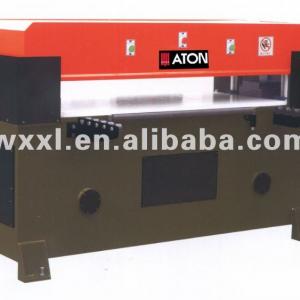

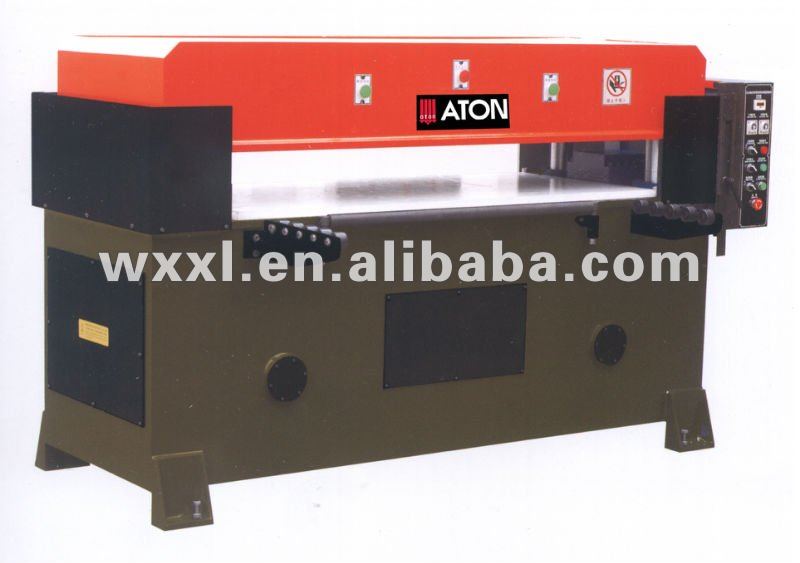

60T Precision hydraulic four-column plane cutting machine
This machine is mainly suitable for cutting varieties of materials such as leather, plastic, plastics packing, cloth etc. - details see: https://www.machineto.com/60t-precision-hydraulic-four-column-plane-cutting-machine-10265090
| Place of Origin:Jiangsu China (Mainland) | Brand Name:BOAO | Model Number:XYJ-3(30,35,40,50,60,80,100T) | color:coffee+white+red |
Configuration list:
| Name | Producing area | Brand |
| intermediate relay | Japan | OMRON |
| contactor | Taiwan | SHILIN |
| seals | USA | PAKER |
| pump | Sino-American | YONGLIN |
| tubing | Germany | QC610 |
| Fuel tank | Sino-Japan | XIANFENG |
| solenoid valve | Taiwan | FENGCHANG |
| operation switch | Taiwan | TIANDE |
| motor | Sino-Japan | YUANBA |
Technical specification
| Model | ATON/600 |
| Max.cutting pressure | 60T |
| Distance between pressing plate and work table | 50-190mm |
| Table effective size | 1600x810mm |
| The table thickness of upper table and lower table | 28mm |
| The diameter of hydro-cylinder | 130mm |
| Pump displacement | 65 |
| Motor power | 5.5kw |
| Machine size | 2350x1310x1500mm |
| Total weight (about) | 4000KG |
| Packaging Detail:wooden case |
| Delivery Detail:depend on the contract |
