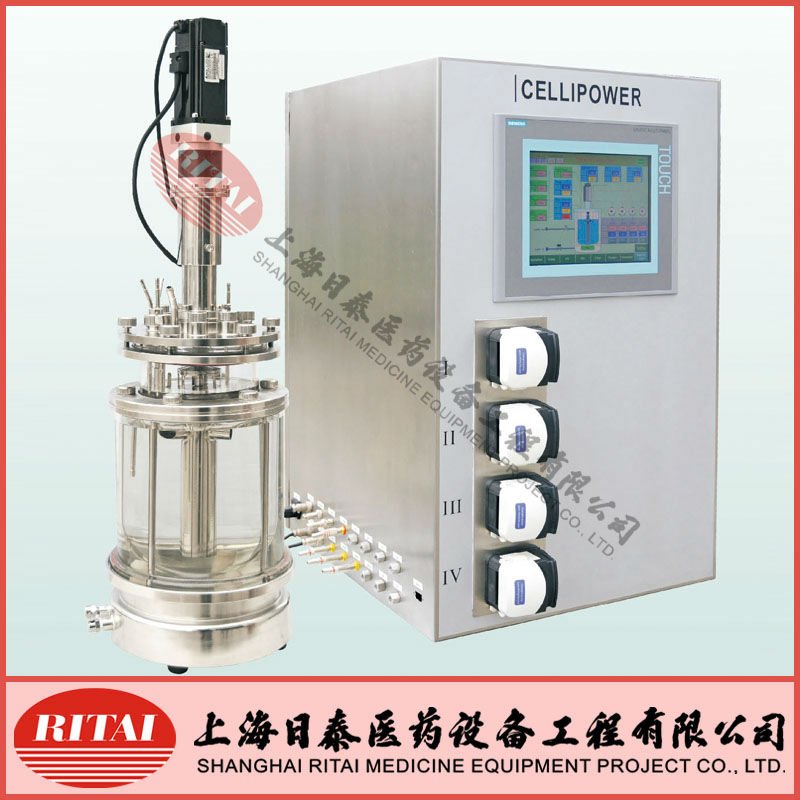

5L glass fermentor for cell culture - details see: https://www.machineto.com/5l-glass-fermenter-for-cell-culture-10024296

Feature:
Basic instrument for research and small scale production Applicable for:echanical agitation system adopts magnetic:
Anchorage independent cell suspension cultivation

Anchorage dependent cell cultivation

Fixed bed type cultivation for fiber disk

Suspension cultivation of fiber disks
Shanghai Ritai enterprise develops a new CELLIPOWER 08 bio reactor system with own intellectual property rights, which is based on the deep and comprehensive research and analysis to each kind of Bioreactor on the world market.
Range:
CELLIPOWER 08 Bioreactor system adopts the control set that is made of SIEMENS S7-200 serial PLC controller, and adopts Microsoft Windows CE 5.0 Standard operation system with SIEMENS TFT 10.4 LCD. Equips with colour multi-functional touch screen, which is high reliable and full of abundant order set. This touch screen, convenient for operation, fits with abundant built-in integrated function, real time characteristic, powerful communication capability, and abundant extending module.
Control modes of cultivation control system are included as follow: PH DO,Temperature,Agitation, Aeration, Level, Perfusion and so on..
Technical parameter:

Type Capacity Main controller Range/mode Range/mode Condenser/Filter Range/mode Range/mode Air inv Standard set Head plate

RTY-E-3 RTY-E-5 RTY-E-7 RTY-E-10 RTY-E-15 RTY-E-20 3.5L 5L 7L 10L 15L 20L Siemens S7-200 PLC Room temperature: >4-60, PID control mode 20-200RPM, PID control mode 316L SS exhaust condenser, 0.2μair filter (disposable) 2-14PH, PID control cascades to peristaltic pump and CO2 0-200, PID control cascades to gas 0.2μ air filter (disposable) Four standard peristaltic pumps, easy to be loaded and unloaded. Assignable. 316L SS,equip with six fastening knobs. Bearing house equip with special shaft seal and Aeration caverna. All ports fit with O rings. Threads are not dipped into solution.
