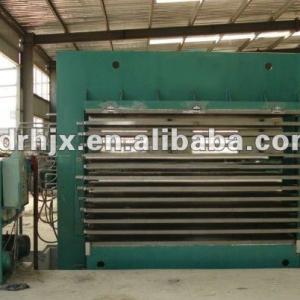

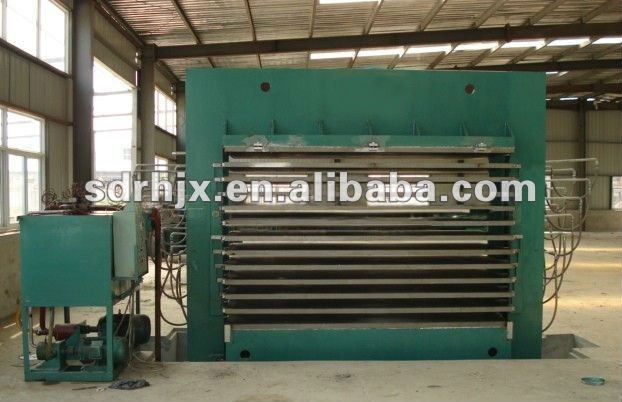

500T hot press machine
1. High quality with reasonable price., 2. Automatic Hydraulic system easy to operate., 3 .Comprehensive after-sales service - details see: https://www.machineto.com/500t-hot-press-machine-10346024
| Condition:New | Type:Hot Press | Place of Origin:China (Mainland) | Brand Name:HUIXIN |
| Model Number:SG48 | After-sales Service Provided:Engineers available to service machinery overseas | Pressure:500T | Openings:15 |
| Plate:2700*1370*42mm | Heating system:heating oil | Application:Making plywood |
| 1 | Nominal pressure | 500 T |
| 2 | Opening | 15 |
| 4 | Hot platen size | 2700×1370×42 mm |
| 5 | Heating system | heating oil |
| 6 | Cylinder | 360mm×2 |
| 8 | Working stroke | 800 mm |
| 9 | Oil pressure | 26 Mpa |
| 10 | Upper beam | 900 mm |
| 11 | Bottom beam | 900 mm |
| 12 | Middle cross beam | 450 mm |
| 13 | Thickness of the frame | 35 mm |
| 15 | Control method | Automatic control |
| 17 | Net weight | About 30T |
| 18 | Overall dimensions | 3550*1370*4100 mm |
| Packaging Detail:NUDE |
| Delivery Detail:15 days after received the downpayment or the L/C |
