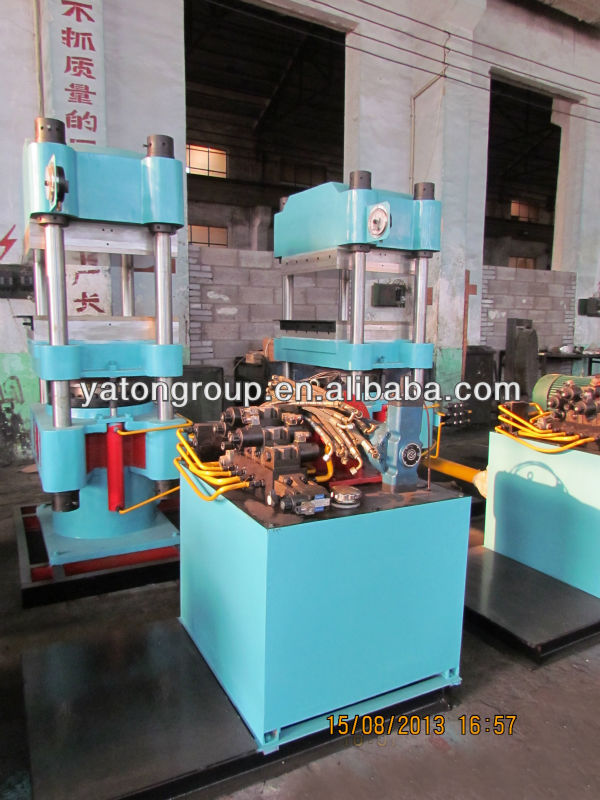

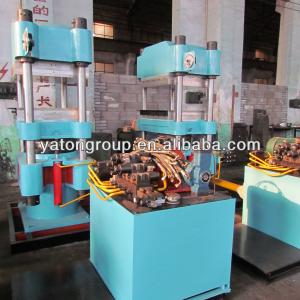

500 ton/ 1500ton/ 2000ton Hydraulic press (YADONG)

This vulcanizing machine is used for vulcanizing all kinds of rubber and plastic model products, and non-model products., Being - details see: https://www.machineto.com/500-ton-1500ton-2000ton-hydraulic-press-yadong-10339585
Condition:NewPlace of Origin:Shandong China (Mainland)Brand Name:YADONGModel Number:XLB-DQ
Certification:ISO/CEWarranty:1YEARAfter-sales Service Provided:Engineers available to service machinery overseasCOLOR:ACCORDING TO CLIENT
500 ton/ 1500ton/ 2000ton Hydraulic press (YADONG)
contact supplier for 500 ton/ 1500ton/ 2000ton Hydraulic press (YADONG)


This vulcanizing machine is used for vulcanizing all kinds of rubber and plastic model products, and non-model products.
Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.

TypeXLB-DQ400X400X2XLB-DQ400X400X2XLB-DQ600X600X2XLB-DQ750X850X2(4)
Total Pressure(mn)0.250.501.001.60
Plate Size(mm)400X400400X400600X600750X850
Daylight(mm)125125125125
Daylight No2222(4)
Piston Stroke(mm)250250250250(500)
Unit Area Pressure(kg/cm2)20312825
Main Motor Power(Kw)32.22.23
Overall Dimension(mm)1300X800X15002400X550X15001401X680X17501900X950X2028
Weight(Kg)1150130035006500(7500)
500 ton/ 1500ton/ 2000ton Hydraulic press (YADONG)
Packaging Detail:WOODEN CASE
Delivery Detail:30DAYS
