Raymond grinding mill, 1.Reliable quality and supplier, 2.Long engine consumption - details see: https://www.machineto.com/4r3016-raymond-grinding-mill-from-bangke-manufacturer-10314634

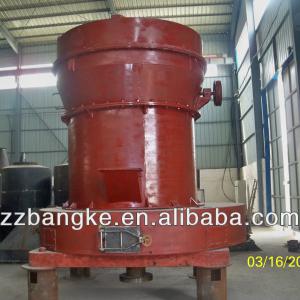

4R3016 raymond grinding mill from bangke manufacturer

Zhengzhou Bangke machinery manufacturing Co., Ltdis specialized in large and medium-sized series of crushers, sand making machines, beneficiation machines, grinding machines, building machines, R&D, production, sales for the integration of machinery manufacturing company.

Raymong grinding mill Application:

Raymond millis suitable in grinding bartle,limestone,ceromic, silica, carbon black, coking coal and so on.it is mainly applied to the powder processing in the industries of mining,metallurgy,constrution materials and chemicl materials and so on.more than 280 kinds of high finesse power grinded,and the final product size can be adjusted as requied in the rang of 80-425meshes(even till 1000mesh if you need). Raymond mill have different types, such as roller raymond mill, high pressure raymond mill, MTM raymond mill and pulverizer and so on.

Raymond grinding mill working principle:

The grinding roller on the function of the centrifugal force are tightly rolled extrusion on the grinding ring, the materials were scooped up by the perching knife, then send to the middle of the grinding rolling and the grinding ring. On the function of the rolling compaction, the materials were crushed to powder. Under the force of the blower, the materials which have been to the powder, were blowed go by the analytical engine. The materials reached the request of the fineness will go by the analytical engine, on the contrary side, which couldn’t reach the requirement will go back to the grinder cavity and continue grinding. And the materials which get through the analytical engine will get into the whirlwind segregator and separate collect. Air exhaust adopt industry filter cloth to isolation and exhaust the blow so that make the powder in once.

The Specification of raymond grinding mill:

Model Data	3R1410	3R2615	3R2714	4R2714	3R3016	4R3016	4R3216	5R4119	6R4525
Max.Feeding Size (mm)	5-8	20	20	15-25	15-25	15-25	25	30	30
Fineness Of Product (mm)	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044
Capacity/Shift(t/8h) (Range Diff Materials)	1-10	2-25	2-28	3-30	3-34	3-36	3-38	6-76	10-120
Speed (r/m)	280	170	170	170	178	178	130	105	82
Inner ring Diameter (mm)	¢405	¢780	¢830	¢830	¢910	¢910	¢970	¢1280	¢1770
Roller Diameter (mm)	¢140	¢260	¢270	¢270	¢300	¢300	¢320	¢410	¢450
Height (mm)	100	150	140	140	160	160	160	190	250
Main Motor Power (kw)	Y160M-6-7.5	Y225S-8-18.5	Y255M-8-18.5	Y225M-8-22	Y225M-8-30	Y225M-8-30	Y225S-4-37	Y280S-4-75	Y315M-4-132
Fan Motor Model (kw)	Y132S-4-5.5	Y180M-4-15	Y180M-4-18.5	Y180M-4-18.5	Y180L-4-22	Y180L-4-22	Y220M-4-30	Y25M-4-55	Y315M-4-132
Classifier Motor(kw)	Y90L-6-2.2	Y112M-6-2.2	Y112M-6-2.2	Y112M-6-2.2	Y132S-6-3	Y132S-6-3	YC1200-4A-5.5	YC1200-4B-7.5	Y160M-4-11
Dimensions (mm)	3340×2161×3246	5970×4000×5000	5970×4000×5000	5970×4000×5000	7500×4500×6200	7500×4500×6200	9900×5800×8500	7850×8000×9700	8850×10500×1100
Weight (kg)	2500	3800	3850	3900	7000	7500	14000	257000	470000

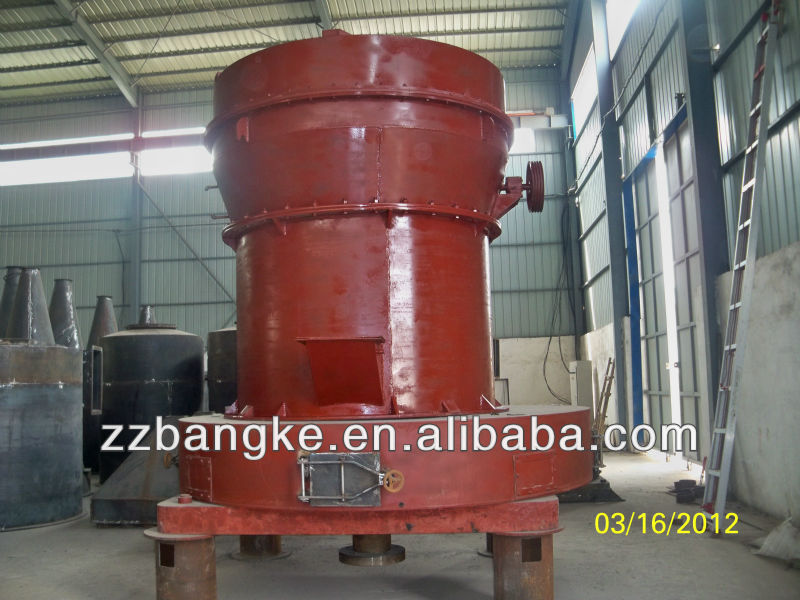

The parts of raymond grinding mill:

The Whole Sets Machine:

If you are interested in our raymond mill, pls tell me the information as follows:

1: what is your raw material ?

2: what size is your raw material ?

3: what is your capacity ?

4: what requirement is your final product ?

When we know the information, we will supply you the best type for you .

Any quetions,please feel free to tell me.
