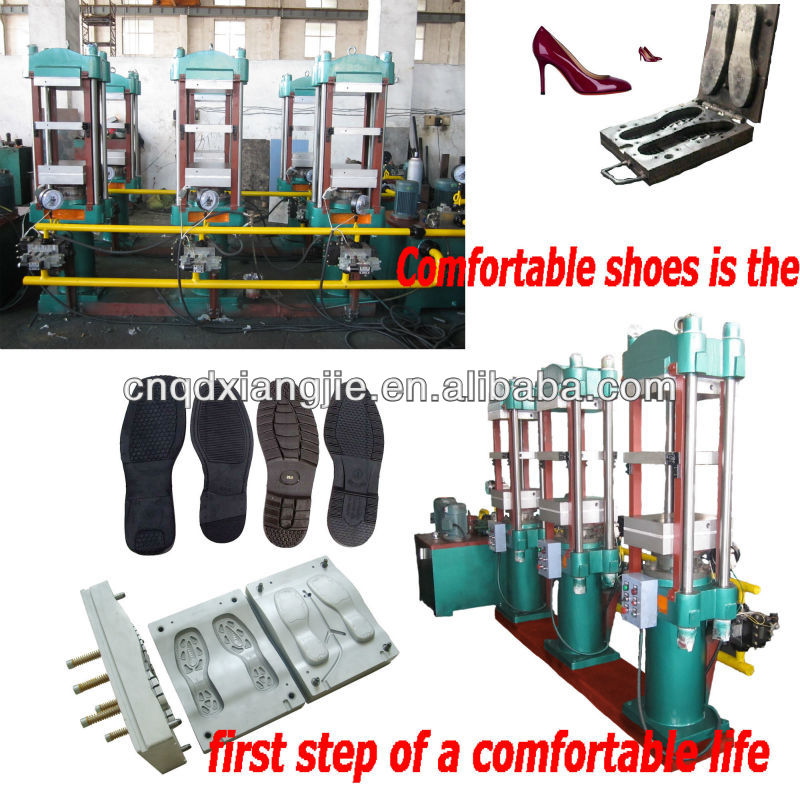

4 stations automatic rubber shoe sole vulcanizing press

1. Automatic rubber sole making machine, 2. Rubber sandals making machine, 3. Rubber sole processing machine, 4. CE&ISO - details see: https://www.machineto.com/4-stations-automatic-rubber-shoe-sole-vulcanizing-press-10339493

Condition:New	Place of Origin:Shandong China (Mainland)	Brand Name:xiangjie	Model Number:XLB-D XLB-450x600x3
Voltage:380V	Power(W):11KW	Dimension(LWH):500x1200x2300mm	Weight:9000kgs
Certification:CE, ISO,BV	Warranty:1 year	After-sales Service Provided:Engineers available to service machinery overseas	high production:Small size saves space
function:used to make rubber soles	type:four column	operation type:full automatically	heating way:electric, steam,oil
skype::xiangjiecompany

==============================================================================================

our company

We---QingDao XiangJie Rubber Machinery Co.Ltd

1, has more than 24 years experience

2, can supply many kinds rubber machines

3, will design as your requirements

products:

Our main products are platevulcanizing pressmachine, two-roll mixing mill machine, rubber extruder machine, banbury intensive kneader machine, bale cutter machine, conveyer belt vulcanizing press machine, tyre retreading machines, rubber refiner machine, rubber cracker machine, etc.we especially specialize in the design and manufacture of the nonstandard products .

Good quality with competitive price.

The products have been exported to many countries. such asAmerica, France, Canada, Australia, and Southeast Asia, Middle-east, etc .

==============================================================================================

rubber sole press

specification

(sole press )
Model	XLB-450×600×3
Total pressure(MN)	1.6
Plate size (mm)	450×600x60
Unit pressure (Mpa)	4.9
Daylight no.	3
journy of Piston stroke(mm)	450
Plate unit-pressure(Mpa)	5.9
mold pressing speed	≥35mm/s
mold opening speed	≥35mm/s
Hydraulic system pressure(Mpa)	17.6
Hydraulic Cylinder Specifications(mm)	340
Hydraulic Cylinder no	1/set x 4 sets
Motor power(kw)	5.5+5.5
Daylight(mm)	150

function

This rubber sole vulcanizing press is mainly used for the pressure molding of common rubber goods .The main unit is column structure .The pressing structure is over-pressing type.

This rubber sole vulcanizing press is equipped with high and low pressure oil pumps directly driven by the motor .The motor is started by magnetic starter.The thermal relay installed inside is used as overload protector.When the motor is overloaded or in fault,the sole machine will stop automatically.

characteristic

1. Automatic ascending,bumping,pressurization and descending operations.

2. High speed ascending, pressure retaining for better product quality.

3. Fast release valve for fast descending but incorporates adjustable speed.

4. Depressurization can be adjusted to suit thickness of products.

5. Special designed platens for even heating area.

6. The above features can be incorporated in automatic and semi-automatic machines.

==============================================================================================

rubber sole moulds are also supplied

==============================================================================================
