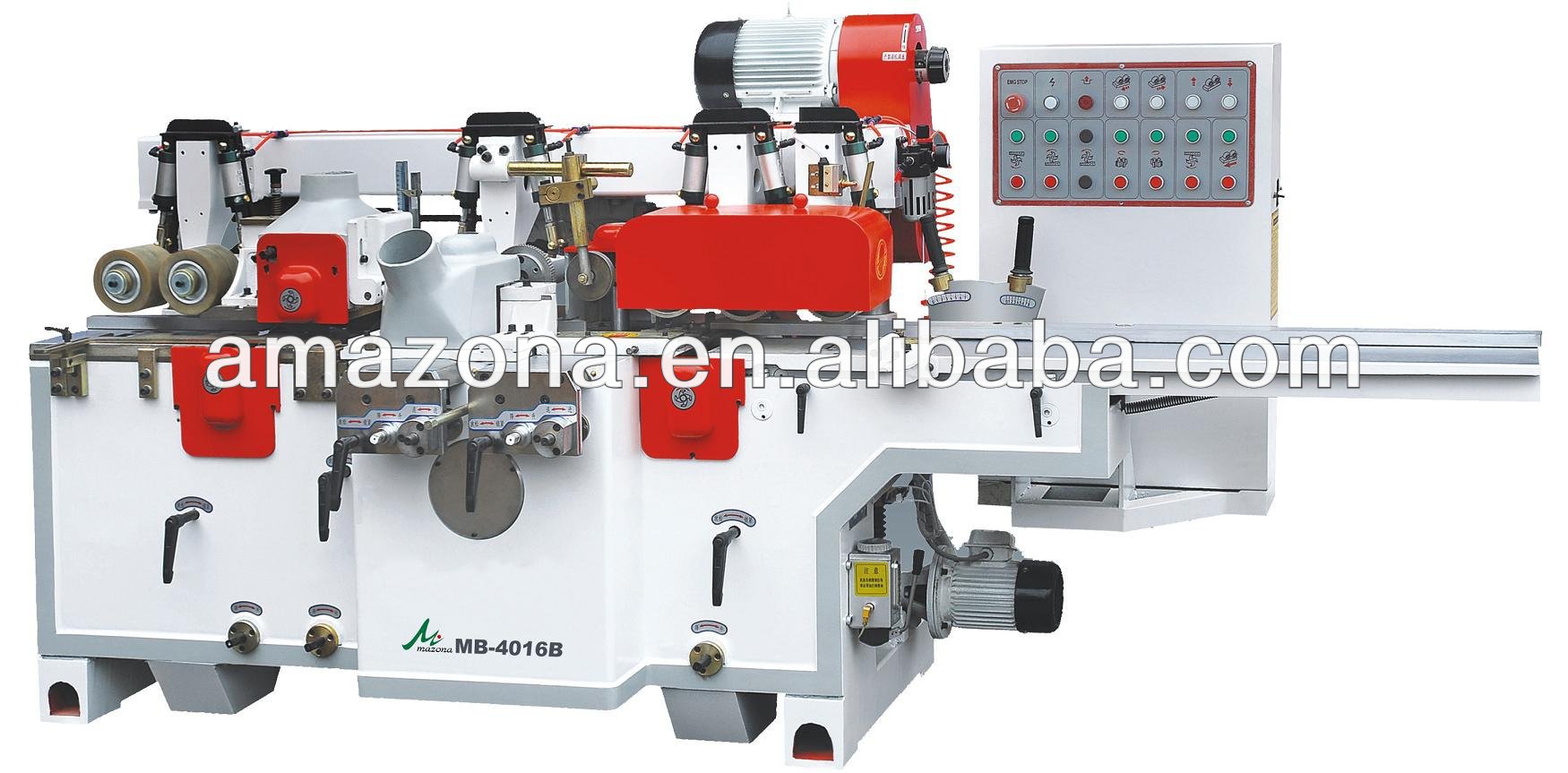

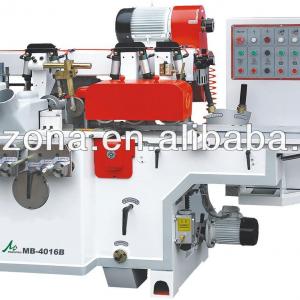

4-side moulder

working width range 20-160mm, working thickness range 8-100mm, feeding speed 6-24 m/min - details see: https://www.machineto.com/4-side-moulder-10354208

Condition:New	Type:Four Side Moulder,4-side	Place of Origin:Shandong China (Mainland)	Brand Name:AMAZONA
Model Number:MB4016B

MODEL		MB4016B	MB4016C
Working width range	mm	20-160	20-160
Working thickness range	mm	8-100	8-100
Feeding speed (stepless)	m/min	6-24	6-24
Rotational speed of cutter shaft	rpm	6000	6000
Cutter mounting diameter (recommended diameter)	mm	120	120
Diameter of edge-trimming cutter(recommended diameter)	mm	136	136
Total power	kw	20.95	20.95
Power of feeding motor	kw	2.2	2.2
Crossbeam elevation	kw	0.75	0.75
Front bed knife and right knife	kw	3kwx2	3kwx2
Upper knife	kw	4( or 5kw)	4( or 5kw)x2
Rear bed knife	kw	4( or 5kw)	/
Left knife	kw	4	4
Overall dimensions	mm	3030x1200x1460	3030x1200x1460
Weight	kg	2200	2200
