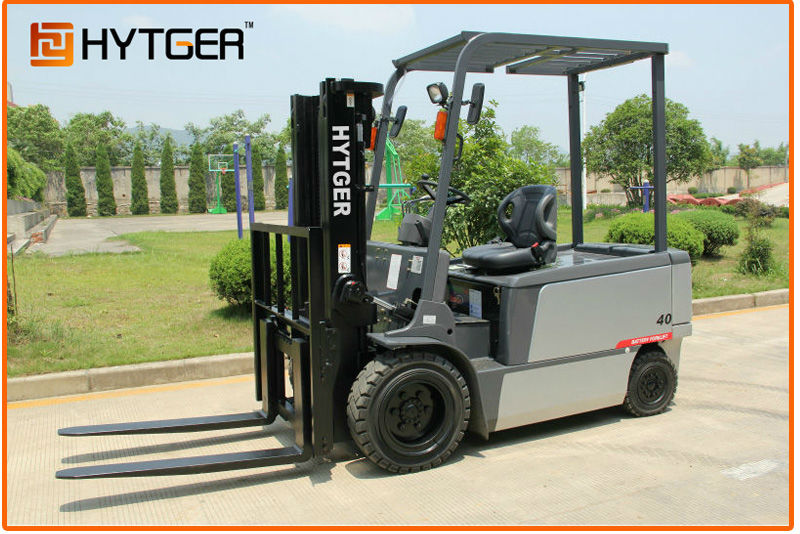

1500-3000kg TCM type 4-Wheel battery Forklift Truck, 1.American CURTIS AC power controller, 2.Longlife rechargeable batteries - details see: https://www.machineto.com/3500-4000kg-tcm-type-4-wheel-battery-electric-forklift-truck-fb15-30-10110204

FB35 FB40 AC Power

Characteristics:

1.Load Capacity: 3000-3500kg
2.Lifting Height: 3000-7000mm

3.SME/ZAPI/CURTIS AC power controller

4.Wide-view Mast
5.Solid Overhead Guard
6.ZAPI/CURTIS Controller
7.Ergonomics Seat
8.Long Life Rechargeable Batteries

9. Flexible car body, small turning radius.

STANDARD SPECIFICATION
General	1	Model			FB35	FB40
	2	Rated Capacity		kg	3500	4000
	3	Load Centre		mm	500
	4	Lift Height		mm	3000
	5	Fork Size	L×W×T	mm	920×100×35
	6	Mast Tilt Angle	F/R	Deg	6°/12°
Characteristic & Dimension	7	Overall Dimension	Length to face of fork (Without fork)	mm	2710	2810
	8		Overall Width	mm	1390	1390
	9		Mast Lowered Height	mm	2075	2075
	10		Mast Extended Height (With backrest)	mm	4260	4260
	11		Overhead Guard Height	mm	2425	2425
	12	Min. Turning Radius		mm	2400	2450
	14	Tread	Front/Rear	mm	1140/950	1140/950
	15	Min. Ground Clearance		mm	140	140
	16	Wheelbase		mm	1800	1800
Chassis & Performance	18	Speed	Travel (Full load)	km/h	13	12
	19		Lifting (Full load)	mm/s	260	240
	20	Gradeability	Laden	%	15	12.5
	21	Service Weight		kg	4960	5260
	22	Tire	Front×2		28x9-15-14PR	250-15-16PR
	23		Rear×2		18x7-8	18x7-8
Power & Transmission	24	Motor	Drive Motor	kw	11
	25		Lift Motor	kw	10
	26	Battery	Standard	V/Ah	72/480
	27	Controller	Manufacture		ZAPI/CURTIS/SME
	28		Type	Mpa	AC
