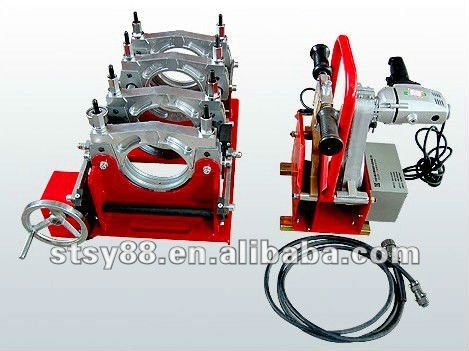

315mm-450mm PE Pipe welding machine

PE Pipe welding machine, 1.Size(mm):315-450, 2.welding material:PE PPR PB, 3.Welding pipe - details see: https://www.machineto.com/315mm-450mm-pe-pipe-welding-machine-10134731

Place of Origin:Hebei China (Mainland)	Brand Name:Fosite	Model Number:315mm-450mm	Input Voltage:230V
Current:315-400A	Power:3000	Dimensions:315mm-450mm	Usage:welding plastic Pipe
Frequency:50/60HZ	milling cutter power:1500W 380V 50Hz	heating plate power:4500W 380V 50Hz	hydraulic unit power:1500W(0-63bar) 230V 50HZ

1.removable PTFE coated heating plate with separate temperature control system
2.low starting pressure
3.CE certification

Application

Suitable for butt welding of plastic pipes and / or fittings made of PE,PP, and PVDF in worksite or workshop

Features

Removable PTFE coated heating plate with separate temperature control system.

Electrical planning tool;

Be made of lightweight and high strength material; simple structure, small and delicate user friendly;

Low starting pressure ensures reliable welding quality of small pipes;

Separate two-channel timer shows time in soaking and cooling phases;

High-accurate and shockproof pressure meter in indicates clear readings.

Changeable welding position brings more convenience while various fitting.

Technical specifications

Welding ranges: plastic pipes: 450mm-800mm

(450mm-500mm-560mm-630mm-710mm-800mm)

Ranges of application: PE,PP and PVDF

Working voltage: ~380V ±10%,50Hz

Total power: 14.7 kW, including: planning tool:1.5 kW, heating plate:11 kW , hydraulic unit motor: 2.2kW

PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°.

Environment temperature: -10° ~ 45° ;

Electronic count-down timer for heating and cooling time ;

Whole machine consists of basic frame, heating plate, planning tool, hydraulic unit, support (for planning tool & heating plate) ;

Welding material:PE,PPR,PB,PVDF

INSTALL IMPORTANT POINTS

1. The connection of pipe and fittings is hot melt.Flange is used to connect the steel pipe.

2. During hot melt connection use welding machine.The quality of welding machine must be guaranteed.To make sure the quality of connection.The portable welding machine applied to the final connection of the pipe and system of dn<63mm.The desk-mounted welding machine applied to the preframe connection of the pipe of dn75-160mm.

3. During heating and peg graft,we can’t move the pipe and fittings.We should insert them directly.

4. After the pressure testing we can close the pipe and use.
