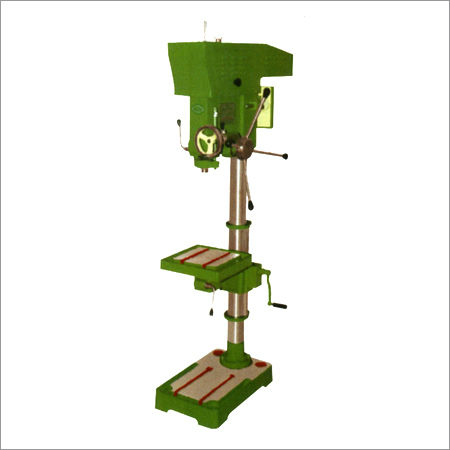

25 Pillar Drilling machine
Heavy Duty 25MM Pillar Drilling Machine - details see: https://www.machineto.com/25-pillar-drilling-machine-10125202
| Condition:New | CNC or Not:Normal | Drilling Speed:8 | Place of Origin:Gujarat India |
| Brand Name:PRABHAT | Model Number:S.J.5 | Voltage:3 phase 440V | Power(W):1.0HP |
| Weight:220Kg |
| Drilling Capacity in Mild Steel | 25 mm |
| Pillar Diameter | 90 mm |
| Spindle nose to table distance | 800 mm |
| Spindle nose to base distance | 900 mm |
| Distance from Spindle centre to Pillar face | 225 mm (max.) |
| Taper in Spindle | MT 3 |
| Number in Speed | 8 Speed |
| Range of Speed | 90 to 2300 RPM |
| Table Size | Round & Square |
| Base Size (Machined Area) | 325 x 390 mm |
| Overall all Base Size | 550 x 375 mm |
| Spindle Travel | 175 |
| Pillar Length | 1200 mm |
| Overall height with Pulley Guard | 1700 mm |
| V. Belt Section | B 47" |
| Weight (Approx.) | 220 kgs. |
| Motor 1440 RPM 3 Phase 440 Volts | 1 HP |
| Packaging Detail:Standard Packing |
| Delivery Detail:Within A week |
