1.stone powder ball mill Manufacturer, 2.high capacity & reliable structure, 3. 20years experience, 4.High Quality - details see: https://www.machineto.com/2013-south-america-cheap-price-copper-and-gold-mining-ball-mill-machine-10314264

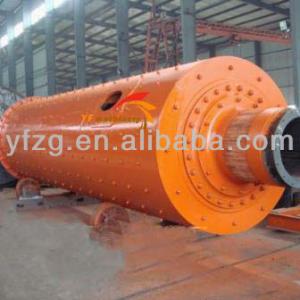

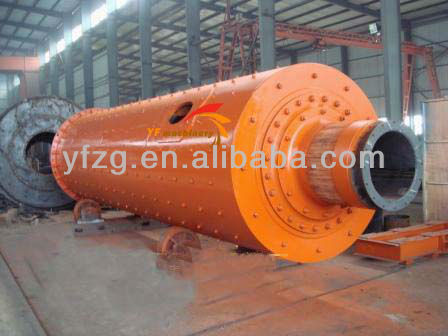

YUFENG Ball mill description:

Our YUFENG brand BALL MILL is a cylindrical device used in grinding (or mixing) materials like ores, chemicals, ceramic raw materials and paints.

We supply energy saving ball mill, ceramic ball mill, batch type ball mill, intermittence ball mill, rod ball mill, coal mill, cement ball mill, Explosion-proof ball mill, dry type ball mill, wet type ball mill, tube ball mill, super fine ball mill, quartz sand ball mill, limestone ball mill, grate ball mill, cement mill, steel slag ball mill,and other grinding machinery. 2013 South America cheap price Copper and Gold Mining Ball Mill Machine

Ball mill application:

The Energy Saving ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc, and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material. 2013 South America cheap price Copper and Gold Mining Ball Mill Machine

Working principle:

This machine changes the intrinsic grinding machine structure. Its body and ground plank are an integral whole, so when fixing, it can be lowered on a plane surface once only. Using double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%.The intrinsic grille pattern forcing evacuation is instead by overfall pattern controlling one. It can improve the milling of the granule and the capacity be increased by 15-20%. 2013 South America cheap price Copper and Gold Mining Ball Mill Machine

Main Parameters

Model	Cylinder speed(r/min)	Ball capacity (t)	Material-in size(mm)	Material-out size(mm)	Capacity(t/h)	Motor power(kw)	Weight(T)
Ø900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
Ø900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
Ø1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
Ø1200×3000	32	5	≤25	0.074-0.4	1.6-5	45	12.8
Ø1200×4500	32	7	≤25	0.074-0.4	1.6.5.8	55	13.8
Ø1500×3000	27	8	≤25	0.074-0.4	2-5	90	17
Ø1500×4500	27	14	≤25	0.074-0.4	3-6	110	21
Ø1500×5700	27	15	≤25	0.074-0.4	3.5-8	132	24.7
Ø1830×3000	24	11	≤25	0.074-0.4	4-10	180	28
Ø1830×6400	24	23	≤25	0.074-0.4	6.5-15	210	34
Ø1830×7000	24	25	≤25	0.074-0.4	7.5-17	245	36
Ø2200×5500	21	30	≤25	0.074-0.4	10-22	370	48.5
Ø2200×6500	21	31	≤25	0.074-0.4	14-26	380	52.8
Ø2200×7500	21	33	≤25	0.074-0.4	16-29	380	56
Ø2400×7000	21	34.5	≤25	0.074-0.4	18-32	400	62.8
Ø2400×8000	20.4	36	≤25	0.06-0.08	18-36	410	81.2
Ø2700×3600	18	37	≤25	<0.08	50	410	77.5

The Energy Saving Ball Mill of Features and Benefits

1.Double-row self-aligning spherical roller bearing replaces babbit-lined bearing. Friction resistance is greatly lowered down, easy to start and 20-30% of energy is saved.

2.Grooved and ringed liner increases contacting surface between balls and ores, improving milling effect and saving energy through its lifting effect to the materials.

3.All-in-one frame is used in middle-sized or small-sized machinery, facilitating engineering construction and equipment installation.

4.Large discharging outlet and high capacity,discharge coarse particles,usually used in first stage milling.

5.It can be used for grinding particles in the process of metal mineral resouces, such as gold, silver, iron, copper, lead, zinc etc., and non-metal mineral resources.
