Cement Ball Mill, * Stable operation, * Made by thick steel plate, * Low consumption - details see: https://www.machineto.com/2013-new-hot-sell-china-cement-ball-mill-in-low-price-10313923

High Performance Made In China Cement Ball Mill In Hot Sell

Cement Ball Millis a type of grinder, it is a cylindrical device used in grinding (or mixing) materials like ores, chemicals, ceramic raw materials and paints.

Cement Ball Millrotate around a horizontal axis, partially filled with the material to be ground plus the grinding medium. Different materials are used as media, including ceramic Cement Ball s, flint pebbles and stainless steel Cement Ball s. An internal cascading effect reduces the material to a fine powder. Industrial Cement Ball mills can operate continuously, fed at one end and discharged at the other end. Large to medium-sized Cement Ball mills are mechanically rotated on their axis, but small ones normally consist of a cylindrical capped container that sits on two drive shafts (pulleys and belts are used to transmit rotary motion).

Cement Ball Millmainly used in beneficiation production line ,it’s main job to grinding materials into powder size ,and then send materials into next step to extraction .Complete Cement Ball Mill consist of feeding hopper , lining plate , Cement Ball mill tube , Cement Ball s (spare parts), gearset , discharging hopper ,underframe etc .

Cement Ball Millcan processing various ore materials , most of ore raw materials can processing by our Cement Ball mill , Sentai Mining Machinery Factory provide Dry /Wet/ Water colling Cement Ball mill .

Cement Ball Mill Technology Data

Model	Speed of bucket (r/min)	Weight of ball	Size of feed opening(mm)	size of outputting feed (mm)	Production (t/h)	Power (kw)	Weight (T)
900×1800	38	1.5	≤20	0.075-0.89	0.65-2	18.5	3.6
900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	4.6
1200×2400	32	3.8	≤25	0.075-0.6	1.5-4.8	45	12.5
1200×3000	32	5	≤25	0.075-0.4	1.6-5	45	12.8
1200×4500	32	7	≤25	0.075-0.4	1.6-5.8	55	13.8
1500×3000	27	8	≤25	0.075-0.4	2-5	90	17
1500×4500	27	14	≤25	0.075-0.4	3-6	110	21
1500×5700	27	15	≤25	0.075-0.4	3.5-6	132	24.7
1830×3000	24	11	≤25	0.075-0.4	4-10	180	28
1830×6400	24	23	≤25	0.075-0.4	6.5-15	210	34
1830×7000	24	25	≤25	0.075-0.4	7.5-17	245	36
2200×5500	21	30	≤25	0.075-0.4	10-22	370	48.5
2200×6500	21	30	≤25	0.075-0.4	14-26	280	52.8
2200×7500	21	33	≤25	0.075-0.4	16-29	475	56

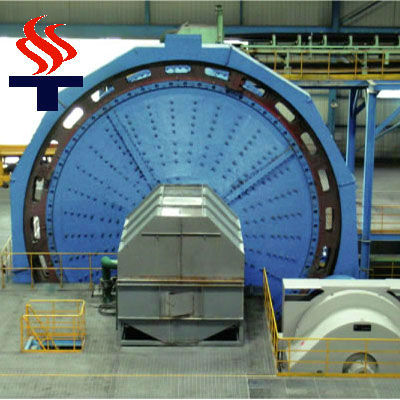

Cement Ball Mill Photo Show
